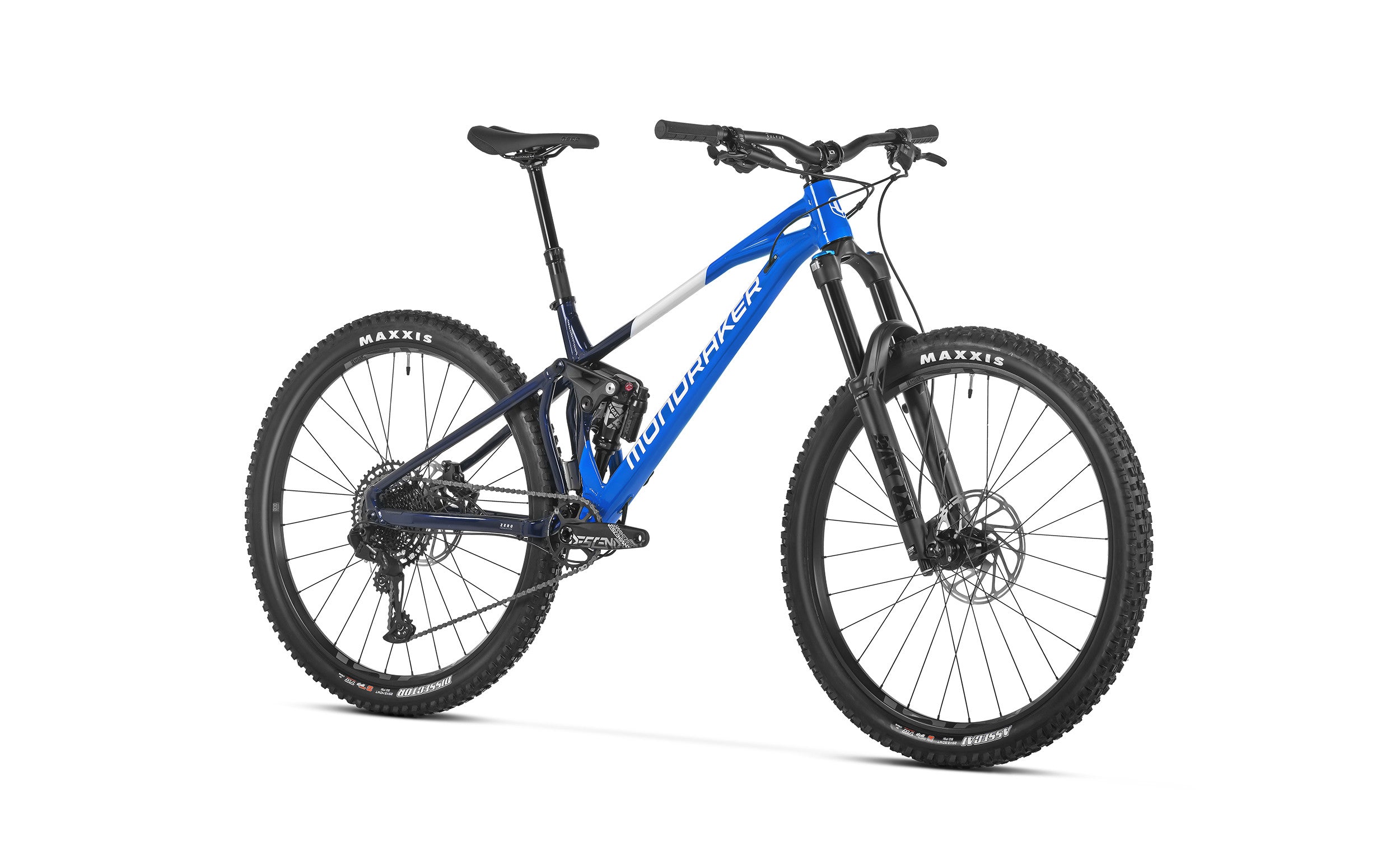

Discover the ultimate trail conqueror - the Mondraker SuperFoxy Mountain Bike in Carrera Blue. Crafted to dominate any terrain, this beast combines advanced engineering with sleek design, making it a must-have for adrenaline junkies and trail enthusiasts alike.
The heart of this powerhouse is its SuperFoxy 29 6061 Alloy Stealth Evo frame. Boasting a Zero Suspension System with 160mm travel, it eats up bumps and drops with ease, while the Forward Geometry ensures precise handling on even the gnarliest trails. Plus, with a SuperBoost 12x157mm rear axle, this bike delivers unmatched stability and control.
Equipped with a Fox Float-X LV Performance rear shock and Fox 38 29 Float RHYTHM fork, every ride is smoother than ever before. Customize your experience with adjustable compression, rebound, and air preload settings for optimal performance in any conditions.
Designed for maximum comfort and control, the Onoff Sulfur handlebar and stem provide a stable platform, while the Onoff Twin grips offer a secure hold through every twist and turn. And when the terrain gets steep, the Onoff Pija dropper seatpost lets you adjust your saddle height on the fly.
Bringing you to a halt with confidence are the Sram DB8 hydraulic disc brakes, delivering reliable stopping power in any weather. Paired with e*thirteen LG1 Enduro rims and Maxxis tires, you'll have the traction and control to push your limits with every pedal stroke.
Powered by a Sram Truvativ Descendant 7K Eagle crankset and Sram SX Eagle drivetrain, this bike offers smooth and efficient shifting across its wide gear range. Plus, with a lightweight construction and meticulous attention to detail, it weighs in at just 17.4 kg, ensuring nimble handling on the trail.
Conquer the mountains in style with the Mondraker SuperFoxy Mountain Bike in Carrera Blue. Whether you're tackling technical descents or shredding flowy singletrack, this bike is ready to elevate your ride to new heights. Get yours today and unleash your inner trail boss.
Specifications
Frame:
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings:
Medium compression, Medium rebound, 0.2 air volume spacer
Fork:
Fox 38 29 Float RHYTHM 170mm, GRIP damper, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm, superboost
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
17.4 kg
