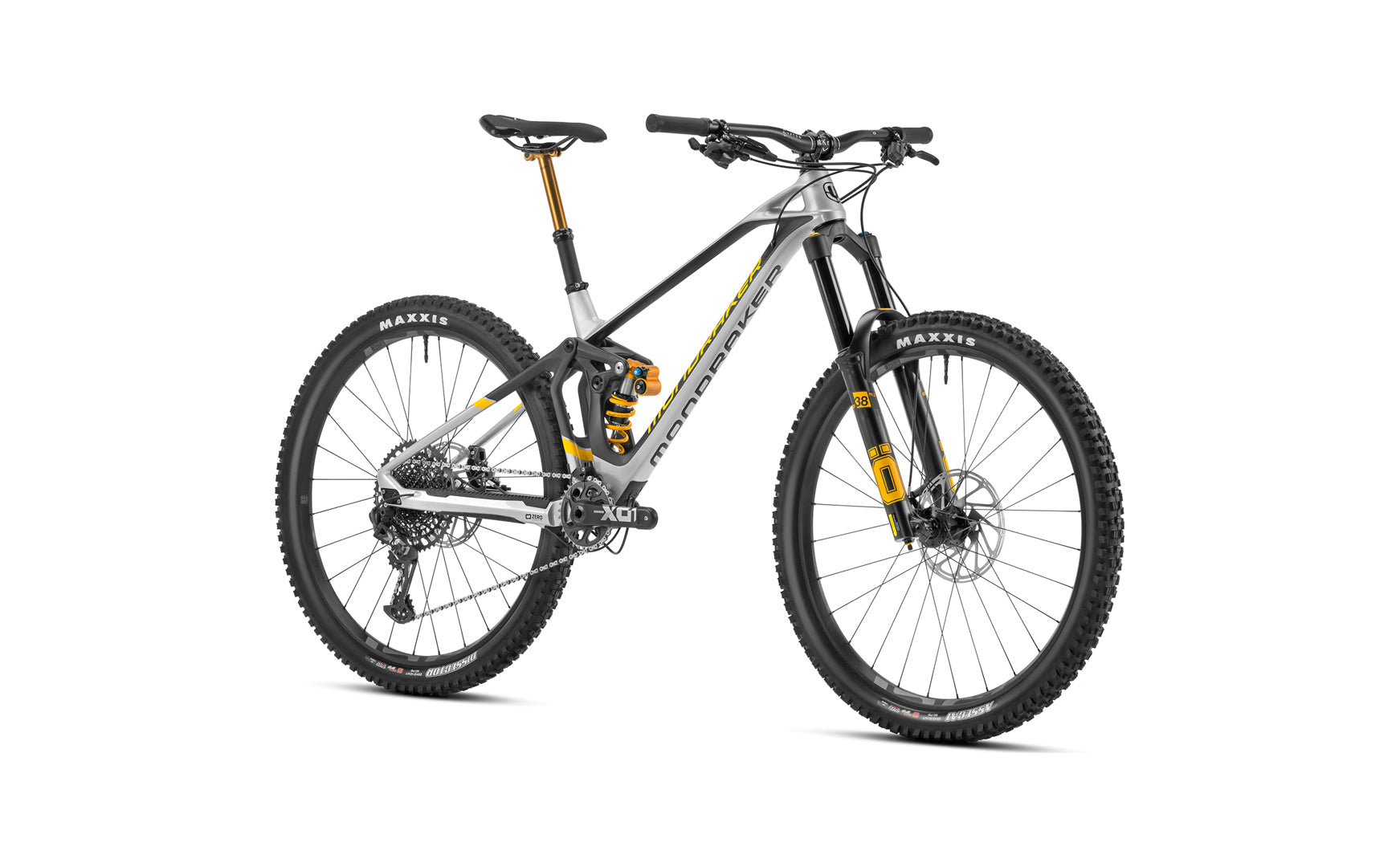

Introducing the Mondraker Superfoxy Carbon RR Mountain Bike in captivating Bunker Grey, now available at our Liverpool bicycle store. Engineered for ultimate performance and precision, this trail conqueror boasts a host of cutting-edge features to elevate your riding experience.
Crafted around a SuperFoxy 29 Stealth Air full Carbon frame, this bike is a masterpiece of modern engineering. With a Zero Suspension System providing 160mm of plush travel, every bump and root on the trail is absorbed effortlessly. The Forward Geometry ensures stability and control, while the Carbon Monoblock upper link enhances durability.
Equipped with an Öhlins TTX 22M.2 NH Coil rear shock and Öhlins RXF 38 M.2 29 fork, this bike delivers unparalleled suspension performance. Whether you're tackling steep descents or technical climbs, the shock settings allow for personalized adjustments to suit your riding style.
Navigate with precision using the Onoff Krypton Carbon handlebar and Krypton FG stem, while the SDG BEL-AIR 3.0 saddle ensures comfort mile after mile. The Sram Code Ultimate Stealth brakes offer unmatched stopping power, paired with e*thirteen LG1 Plus Enduro rims for reliability on any terrain.
Powered by a Sram X01 Carbon Eagle crankset and GX Eagle drivetrain, shifting is smooth and efficient. With a wide gear range provided by the Sram XG-1275 cassette, conquering steep climbs becomes effortless.
Complete with Maxxis Assegai and Dissector tires for exceptional grip, the Mondraker Superfoxy Carbon RR is ready to take on any trail with confidence and style. Plus, with a weight of just 15.8 kg, it's agile and nimble, allowing you to push your limits without compromise.
Don't miss your chance to own the ultimate trail companion. Visit our Liverpool store today, adventure awaits!
Specifications
Frame:
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Öhlins TTX 22M.2 NH Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram Code Ultimate Stealth, oversized 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Ultimate Stealth, oversized 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm, superboost
Chain:
Sram GX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M071
Others:
*Geometry kit included: 0º headset cups and chainstay adaptor for 450mm CS length
Weight:
15,8 kg
