Dominate Downhill Trails with Precision and Power

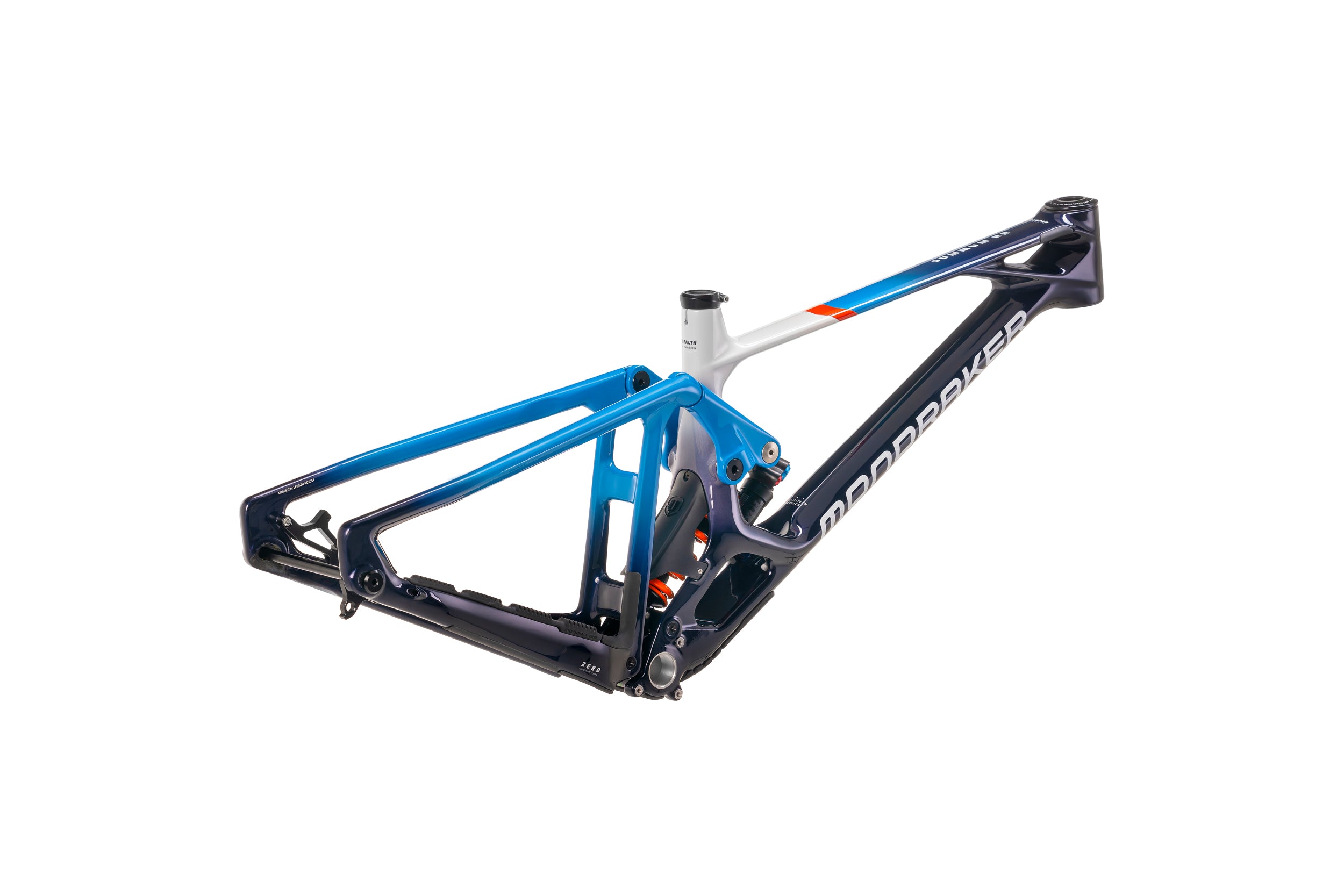

Experience the pinnacle of downhill performance with the Mondraker Summum Carbon RR Mullet Frameset, available in a striking Midnight Blue finish. Engineered for elite riders who demand the very best, this frameset blends cutting-edge materials with advanced geometry to deliver unparalleled speed, control, and responsiveness on the toughest descents.
Key Features
-
Full Carbon Stealth Air Frame: Lightweight yet incredibly robust, the carbon construction features Mondraker’s Zero Suspension System, offering 200mm of buttery-smooth travel for maximum traction and shock absorption.
-
Forward Geometry: Pioneering design ensures superior stability and confidence at high speeds, ideal for aggressive downhill riding.
-
Fox DHX2 Factory Shock: Equipped with Kashima coating for ultra-smooth operation, it includes advanced high- and low-speed compression and rebound settings, plus a super-light steel (SLS) spring tailored for your size.
-
Integrated Protection: Custom frame protectors and a shock mudguard safeguard against debris, keeping your bike in top condition.
-
Internal Cable Routing: HHG internal routing ensures a clean aesthetic and reduced maintenance hassle.
Precision Components
-
SuperBoost 12x157mm Rear Axle: Provides unmatched stiffness and durability for the most rugged terrains.
-
ISCG 05 Compatibility: Ready for chain guides and bash guards to suit your riding style.
-
Geometry Kit Included: Fine-tune your ride with adjustable headset cups offering +/-1° or +/-2° angles for optimized handling.
-
Onoff Krypton DH Stem: Adjustable length and 31.8mm bar clamp for a tailored fit.
Built for Champions
From its Carbon Monoblock upper link to the Enduro MAX dual-row bearings, every detail of the Summum Carbon RR Mullet is crafted for performance. Designed to accept both 29” and MX wheel setups, this frameset provides the versatility to conquer any downhill course.
Sizes Available
Choose the perfect fit with sizes ranging from S to XL.
Why Buy from Us?
As Liverpool’s trusted bike store, we offer expert advice and support to help you build your dream downhill bike. Whether you're a seasoned racer or pushing your limits, the Mondraker Summum Carbon RR Mullet Frameset delivers the confidence and capability you need to succeed.
Unleash the ultimate downhill machine—order the Mondraker Summum Carbon RR Mullet Frameset today!
Specifications
Frame: Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
Sizes: S / M / L / XL 29" and MX
Rear shock: Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings: ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
Headset: Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem: Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Derailleur hanger: Mondraker M075
Others: *Geometry kit included: +-1º / +-2º headset cups
