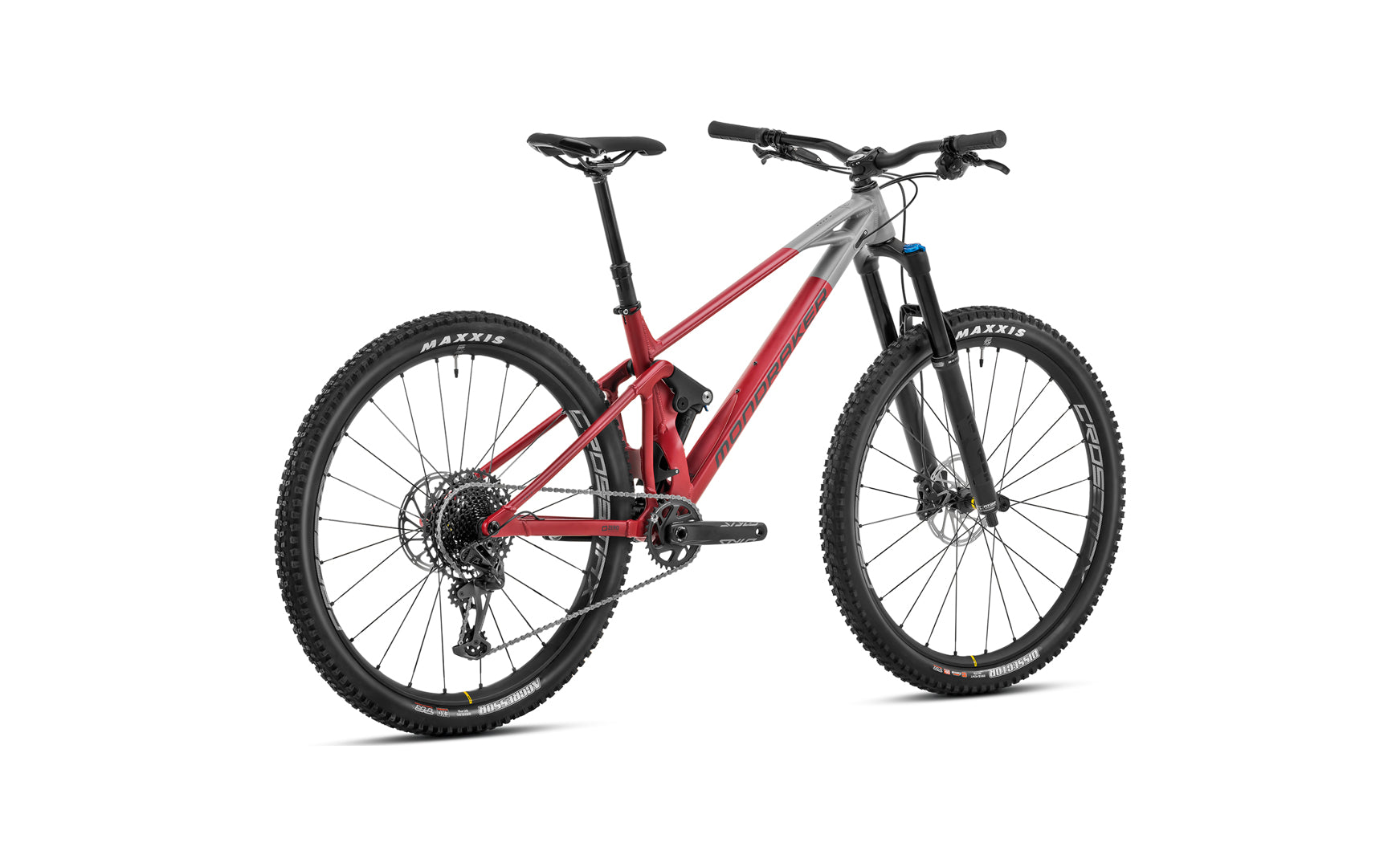

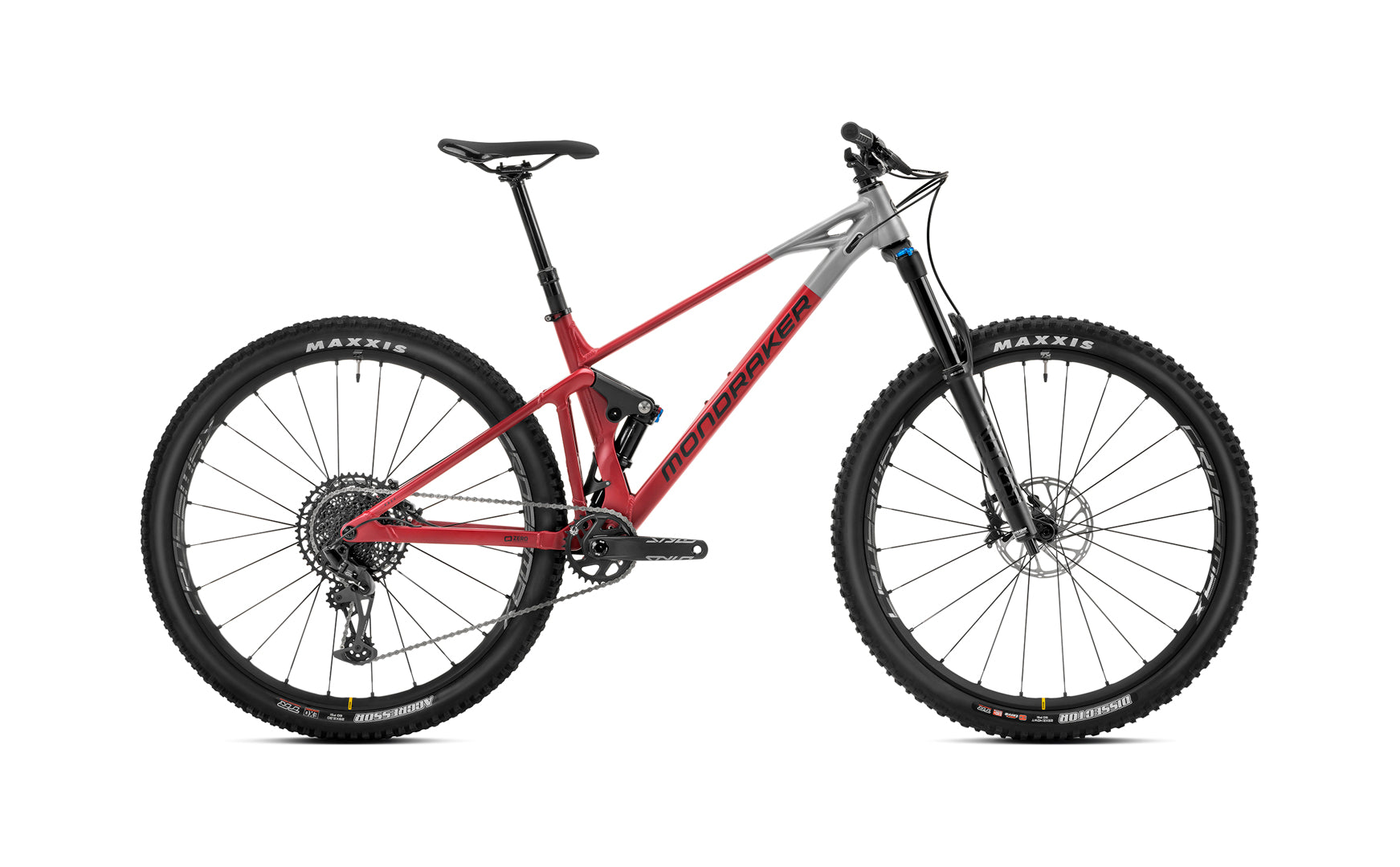

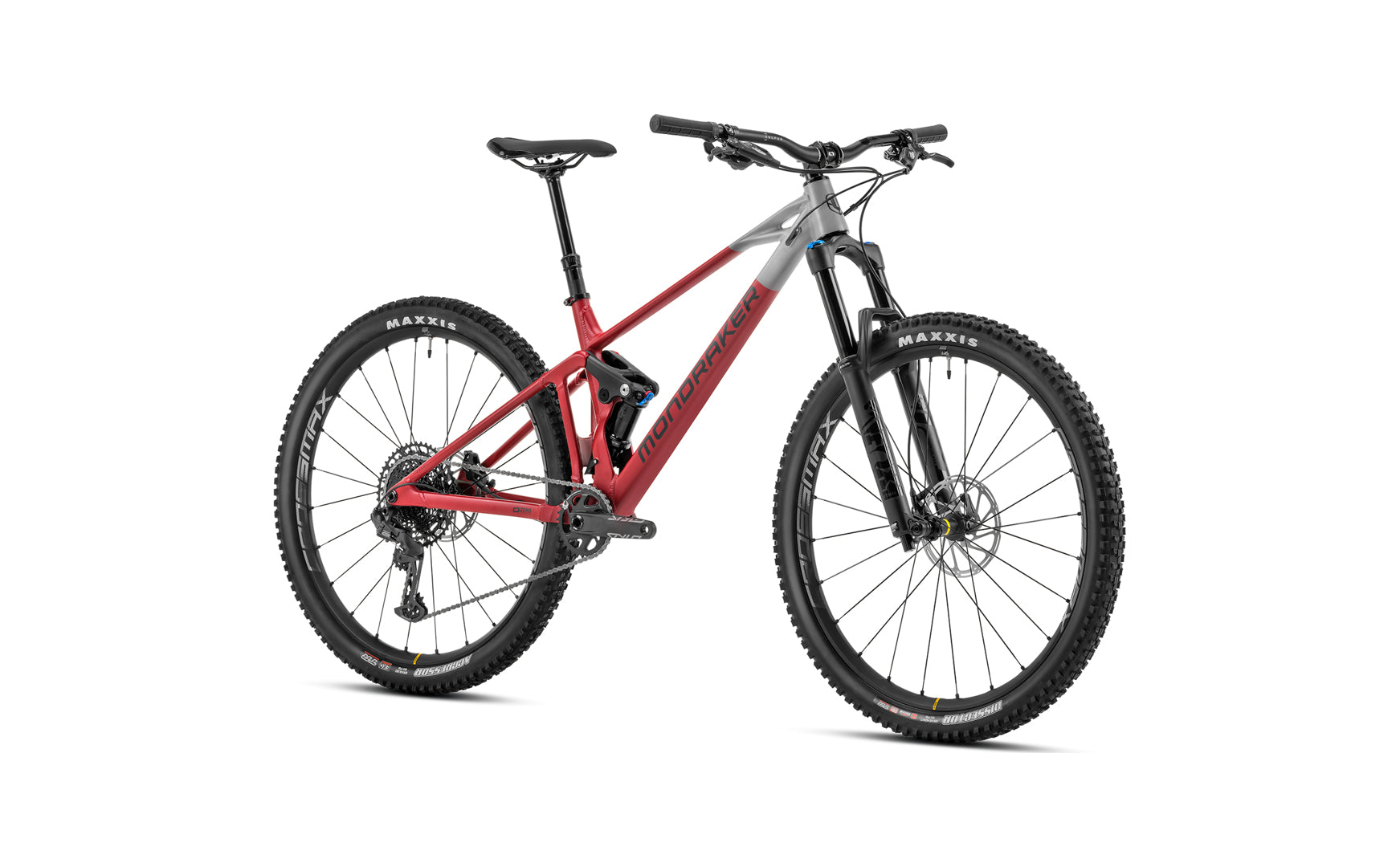

Experience the thrill of the ride with the Mondraker Raze R Trail Bike, designed to take your off-road adventures to the next level. Crafted with precision and performance in mind, this bike boasts a sleek Cherry Red coloUr that stands out on any trail.
Featuring a robust Raze 29 6061 Alloy Stealth Evo frame, this bike offers 130mm of travel with the Zero Suspension System, ensuring a smooth and controlled ride over rough terrain. The forward geometry enhances stability and control, while the Boost 12x148mm rear axle provides added strength and responsiveness.
Equipped with a Fox Float DPS LV EVOL Performance rear shock and Fox 36 29 Float GRIP EVOL Rhythm fork, you'll enjoy customizable settings for optimal comfort and performance on every ride. The ONOFF Saturn tapered headset and ONOFF Sulfur components ensure durability and reliability, while the ONOFF Pija dropper seatpost allows for seamless adjustments on the fly.
Bringing you to a smooth stop are the Sram G2 R 4-piston brakes, paired with Mavic CrossMax XL S rims and Maxxis tires for superior traction and control. The Truvativ Stylo 7k Eagle crankset and Sram GX Eagle drivetrain deliver precise shifting and efficient power transfer, making uphill climbs a breeze.
Whether you're tackling technical trails or cruising through the countryside, the Mondraker Raze R Trail Bike is your ticket to adventure. With its lightweight design and top-of-the-line components, this bike is ready to take on whatever the trail throws your way.
Don't miss out on the ultimate trail riding experience – get your Mondraker Raze R Trail Bike in Cherry Red today and discover the thrill of off-road exploration like never before!
Specification:
Frame:
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset:
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Twin, 1lock-on, 135mm
Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
MDK series PU 2023
Front brake:
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust
Rims:
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes:
24 straight-pull double butted spokes
Front hub:
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derrailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1230, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
14.9 kg
