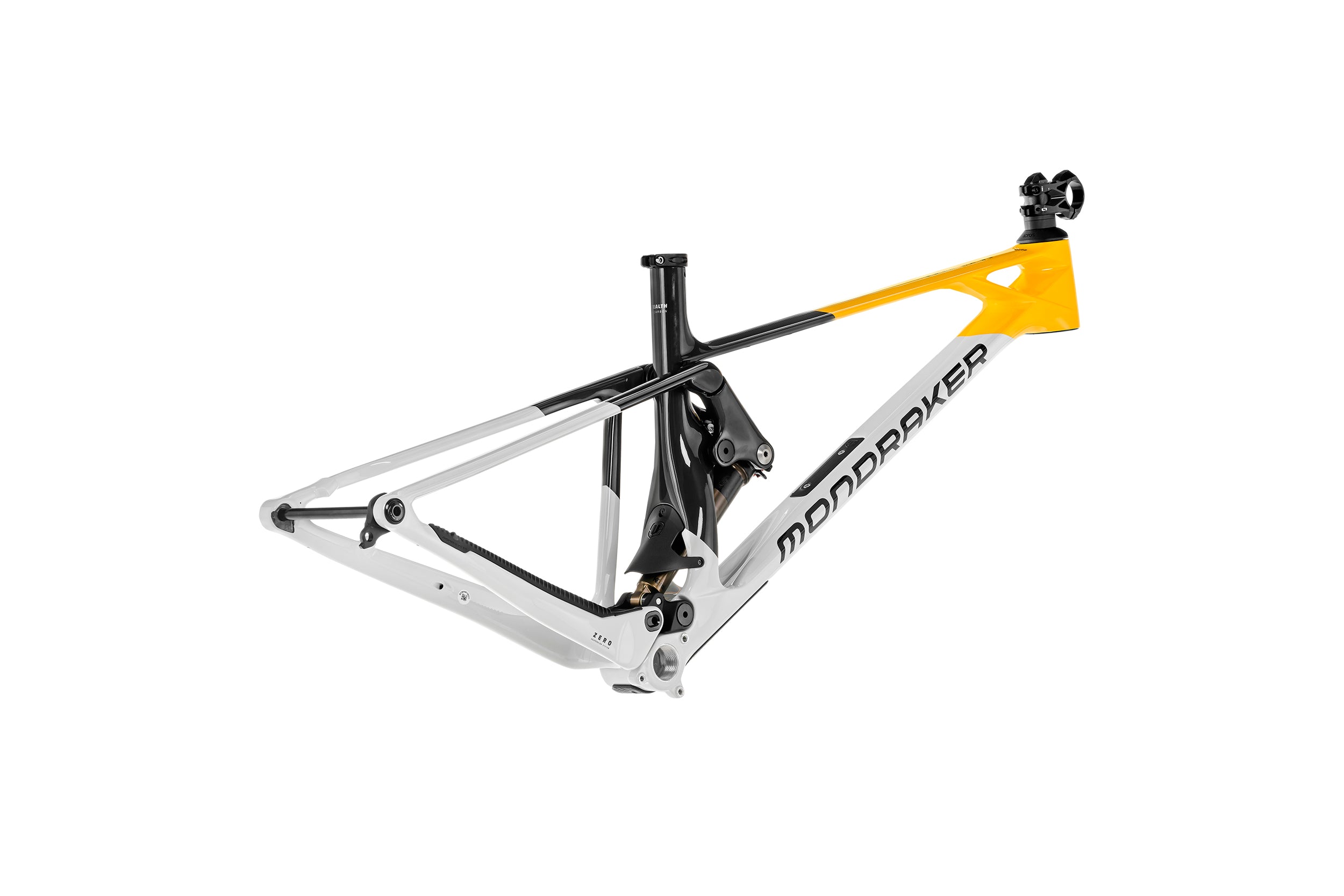

Introducing the Mondraker Raze Carbon RR SL Trail Frameset in Dense Yellow – an epitome of trail excellence. Crafted to conquer every terrain with finesse, this frameset from Mondraker is now available at our Liverpool store. Here's why it's a game-changer:
Constructed with precision and passion, the Raze 29 Stealth Air full Carbon frame boasts the revolutionary Zero Suspension System, delivering 130mm of travel. Designed with Forward Geometry, it ensures stability and agility on the trails, while the Carbon Monoblock upper link guarantees unparalleled durability.
Embrace the freedom to explore with confidence, thanks to the Boost 12x148mm rear axle and tapered head tube, providing unmatched control and responsiveness. With a dedicated 1x drivetrain design and HHG internal cable routing, enjoy seamless shifting and clean aesthetics.
Available in a range of sizes – from S (380mm) to XL (500mm) – find your perfect fit and elevate your riding experience to new heights.
Equipped with a Fox Float DPS Factory Kashima EVOL LV rear shock, indulge in customizable comfort with Compression 3 positions lever and adjustable settings for low-speed compression, rebound, and air preload. The trunnion top mount ensures optimal performance, while the 30x8mm bottom bushings enhance durability.
Fine-tune your ride with ease using the Acros custom headset, featuring angular contact bearings for smooth steering and internal cable routing for a clutter-free cockpit.
Completing this exceptional package is the Onoff Krypton FG 30mm stem, meticulously crafted for precision and stability on every ride.
Get ready to conquer the trails like never before with the Mondraker Raze Carbon RR SL Trail Frameset. Visit our Liverpool store today and experience the ultimate in trail performance.
Specification:
Frame:
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Derailleur hanger:
Sram UDH
