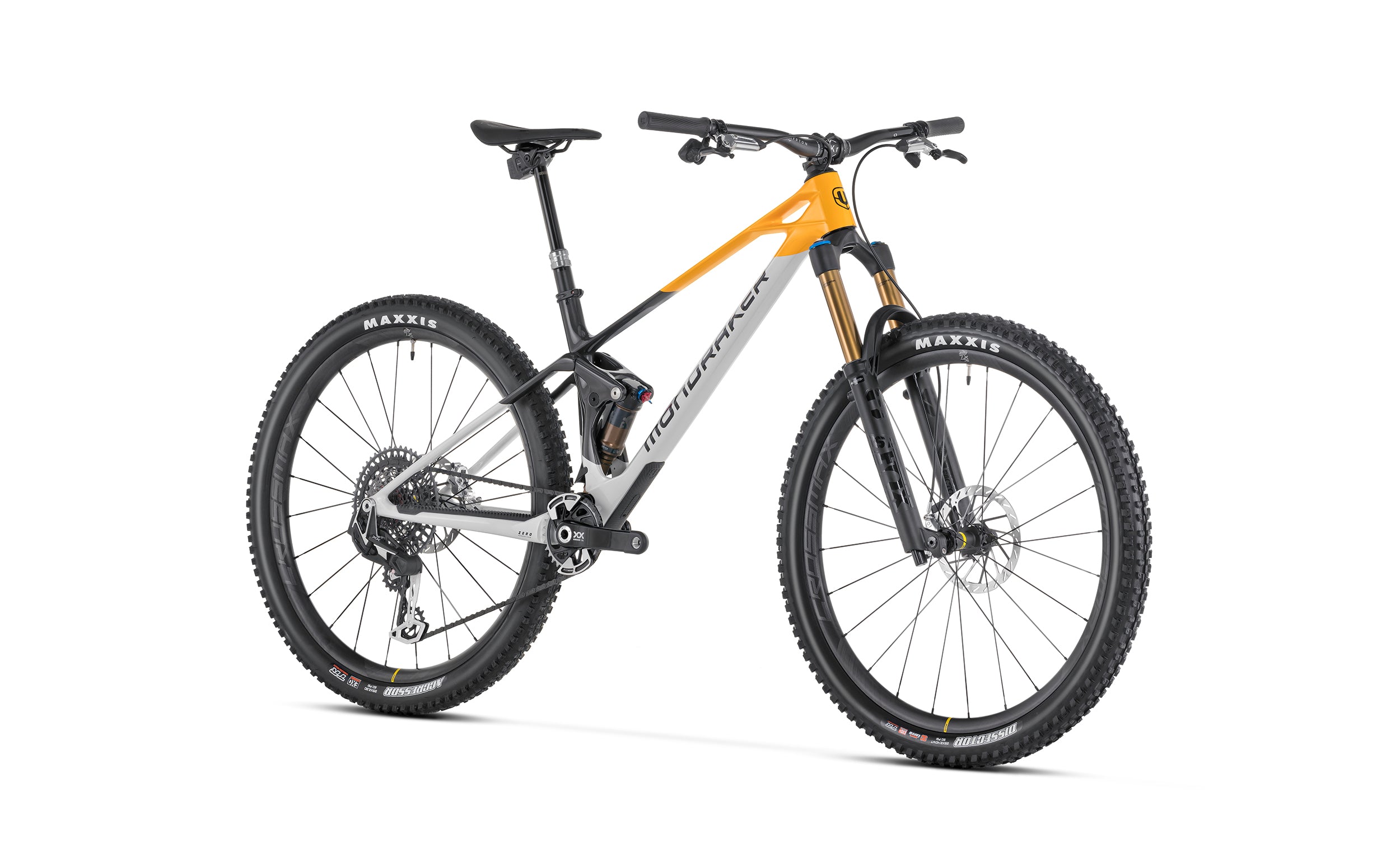

Introducing the Mondraker Raze Carbon RR SL Trail Bike in Dense Yellow – a high-performance marvel designed to conquer any trail with style and precision. Crafted for the avid trail enthusiast, this bike combines cutting-edge technology with Mondraker's renowned engineering excellence to deliver an unparalleled riding experience.
Frame: The Raze 29 Stealth Air full Carbon frame boasts the Zero Suspension System with 130mm of travel, ensuring a smooth and responsive ride on varied terrain. Its Forward Geometry provides stability and control, while the Carbon Monoblock upper link enhances durability. With Boost 12x148mm rear axle and HHG internal cable routing, this frame is optimized for performance and aesthetics.
Shock System: Equipped with a Fox Float Factory Kashima EVOL rear shock, featuring 2-position compression settings and rebound adjustment, this bike offers customizable suspension to suit your riding style. The shock settings, tuned for light compression and rebound, ensure optimal performance on every ride.
Fork: The Fox 36 29 Float GRIP2 Factory Kashima fork with 150mm travel and adjustable high and low-speed compression and rebound settings provides unparalleled control and comfort on challenging trails.
Components: From the Onoff Krypton Carbon handlebar to the Sram Level Ultimate brakes and Sram XX Eagle AXS drivetrain, every component is carefully selected for maximum performance and reliability. Mavic CrossMax Carbon XL R rims paired with Maxxis tires deliver exceptional traction and durability, while the Sram XX Carbon Eagle crankset ensures efficient power transfer.
Size Options: Available in four sizes – S, M, L, and XL – riders of all heights can find their perfect fit for an optimal riding experience.
Weight: Weighing in at just 13.3 kg, this bike strikes the perfect balance between lightweight agility and robust durability.
Whether you're tackling technical descents or powering through challenging climbs, the Mondraker Raze Carbon RR SL Trail Bike is your ultimate companion on the trails. Experience the thrill of off-road adventure like never before with this top-of-the-line trail bike, available now at our Liverpool store.
Specification:
Frame:
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression,light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle:
Fizik Vento Argo X5
Front brake:
Sram Level Ultimate Stealth, 4-piston calliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram Level Ultimate Stealth, 4-piston calliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Rims:
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes:
Mavic 24 straight-pull double butted spokes
Front hub:
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Sram XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings:
32T, CNC-machined alloy, T-Type
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1295, 10-52T, T-Type, 12s
Weight:
13.3 kg
