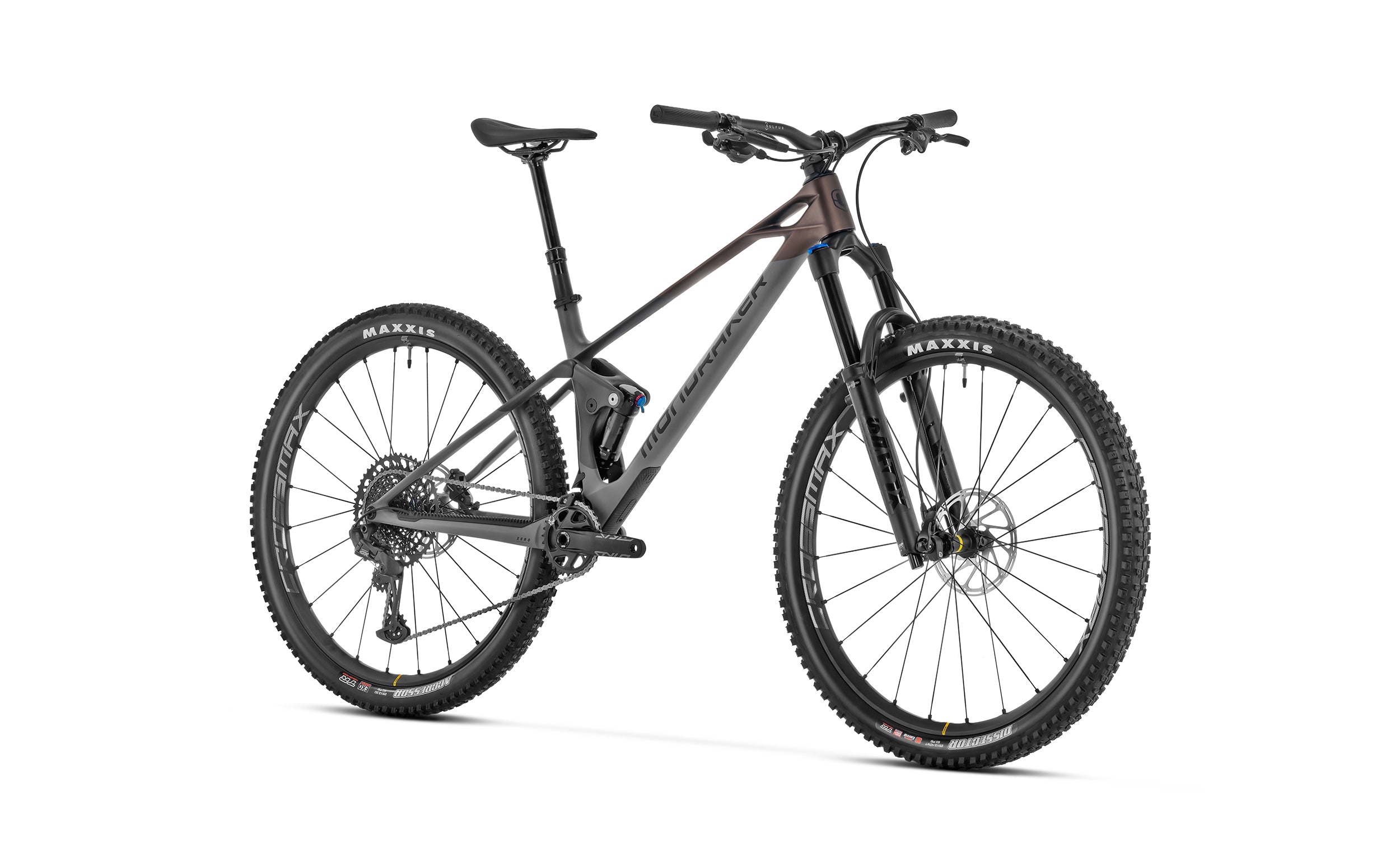

Introducing the Mondraker Raze Carbon R Trail Bike in Bronze, the epitome of performance and style. Crafted for adventurers seeking the ultimate thrill on the trails, this bike seamlessly combines cutting-edge technology with sleek design.
At its core lies the Raze 29 Stealth Air full Carbon frame, boasting Zero Suspension System with 130mm travel for unrivalled agility and control. The Forward Geometry ensures precise handling while the Carbon Monoblock upper link enhances durability. With Boost 12x148mm rear axle and ISCG 05 compatibility, this bike is ready to conquer any terrain.
Available in four sizes (S, M, L, XL), the Raze Carbon R Trail Bike offers a tailored fit for every rider. Paired with a Fox Float EVOL Performance rear shock and Fox 36 29 Float GRIP EVOL Performance fork, it delivers a plush and responsive ride. Fine-tune your experience with adjustable settings including compression, rebound, and air preload.
Designed for maximum comfort and control, the Onoff Sulfur FG stem and Onoff Sulfur 1.0 handlebar provide stability while Onoff Desert grips offer superior grip in all conditions. The Onoff Pija dropper seatpost ensures seamless transitions on technical descents, complemented by the Fizik Vento Argo X5 saddle for long-lasting comfort.
Equipped with Sram G2 R brakes, Mavic CrossMax XL S rims, and Maxxis tires, this bike delivers unmatched stopping power and traction. The Truvativ Stylo 7k Eagle crankset and Sram GX Eagle drivetrain offer smooth and efficient pedalling, while the Sram XG-1275 cassette provides a wide gear range for tackling steep climbs and fast descents.
Lightweight yet durable, the Mondraker Raze Carbon R Trail Bike weighs just 13.6 kg, making it agile on the trails without compromising strength. Whether you're exploring rugged mountains or shredding flowy singletracks, this bike is your ticket to adventure.
Experience the thrill of off-road riding like never before with the Mondraker Raze Carbon R Trail Bike. Upgrade your trail experience today at our Liverpool store and discover the true essence of trail riding perfection.
Specification:
Frame:
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
Fizik Vento Argo X5
Front brake:
Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims:
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes:
Mavic 24 straight-pull double butted spokes
Front hub:
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Sram UDH
Weight:
13.6 kg
