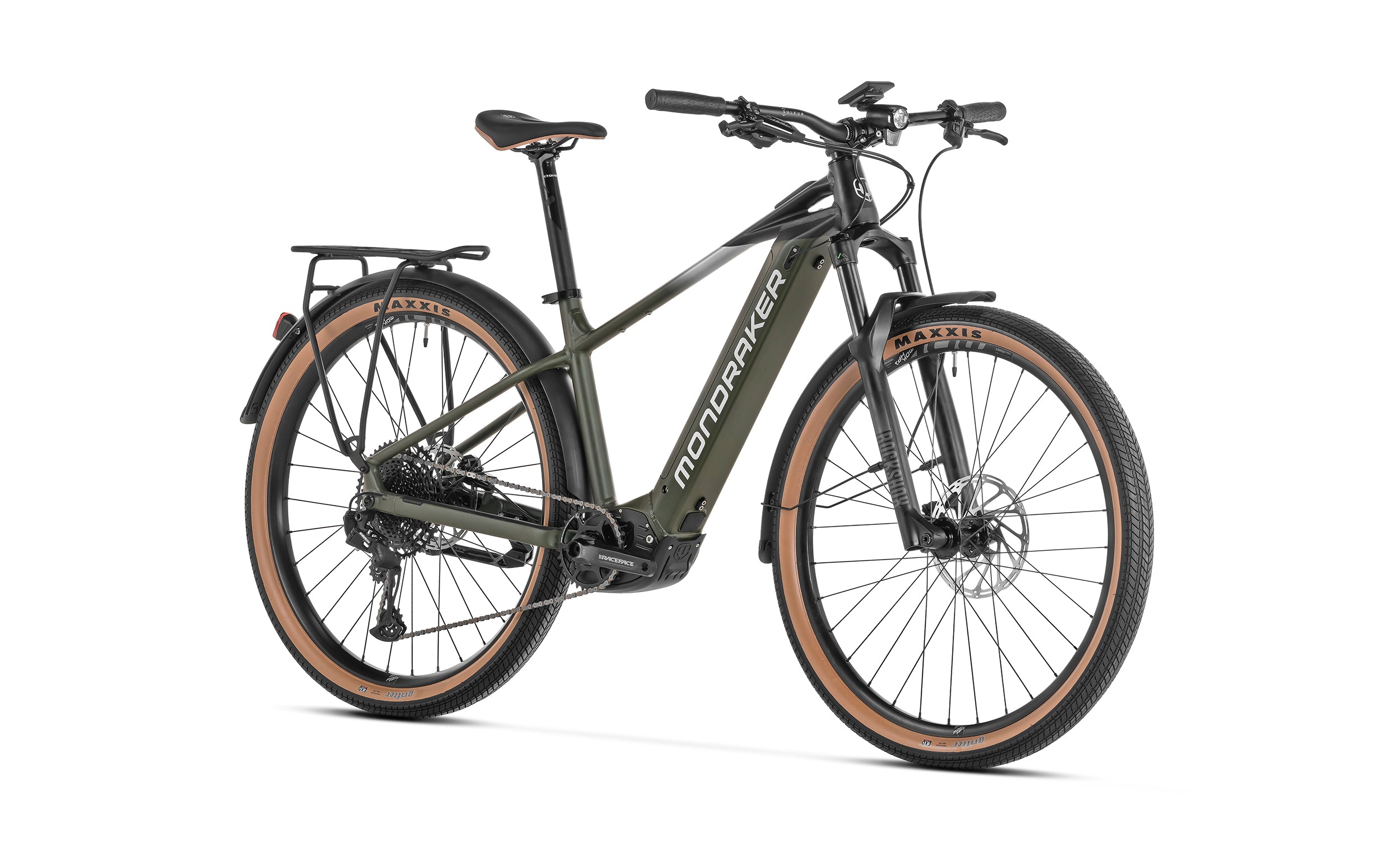

Introducing the Mondraker Prime X Electric Mountain Bike in Army Green – the ultimate blend of power, agility, and style for conquering any terrain. Designed for thrill-seekers and adventurers, this bike boasts top-notch components and cutting-edge technology to elevate your riding experience to new heights.
Crafted with a Prime 6061 Xtralite Full Butted Alloy frame featuring Forward Geometry, this bike offers stability and control like never before. The internal removable battery ensures a sleek aesthetic while providing ample power for long rides. Plus, with integrated dropout speed sensors, every pedal stroke is optimized for maximum efficiency.
Available in a range of sizes from XS to XL, finding your perfect fit is a breeze. Coupled with a RockShox Recon Silver RL 29 fork with 120mm of travel, you'll enjoy a smooth and responsive ride over any obstacles in your path. The Boost 12x148mm rear axle enhances stability, while the tapered head tube adds precision handling.
Equipped with a Bosch Performance Line CX Cruise motor and a Bosch Powertube 625Wh battery, this bike delivers unrivaled performance and range. Whether you're tackling steep climbs or ripping down descents, you'll have the power you need to keep pushing the limits.
But it's not just about power – the Mondraker Prime X is packed with features to enhance your ride. From the Sram Level T hydraulic disc brakes for reliable stopping power to the Maxxis Grifter tires for exceptional traction, every component is carefully selected for maximum performance.
And let's not forget about the details. With a sleek Army Green finish, this bike is sure to turn heads on the trails. Plus, practical additions like the front and rear lights, custom fenders, and rear rack ensure you're ready for any adventure, day or night.
So why wait? Take your riding to the next level with the Mondraker Prime X Electric Mountain Bike. Whether you're hitting the trails or exploring the urban jungle, this bike is your ticket to adventure. Visit our Liverpool store today and experience the thrill for yourself!
Sizes:
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork:
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
MDK Urban 35mm, 6061 forged alloy, 31.8mm barbore
Handlebar:
MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Shaper
Seatpost:
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle:
MDK urban
Front brake:
Sram Level T, 2 piece calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level T, 2 piece calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims:
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire:
Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Rear tire:
Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals:
Urban pedal resin black
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Others:
Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight:
24.5 kg
Display:
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 625Wh
