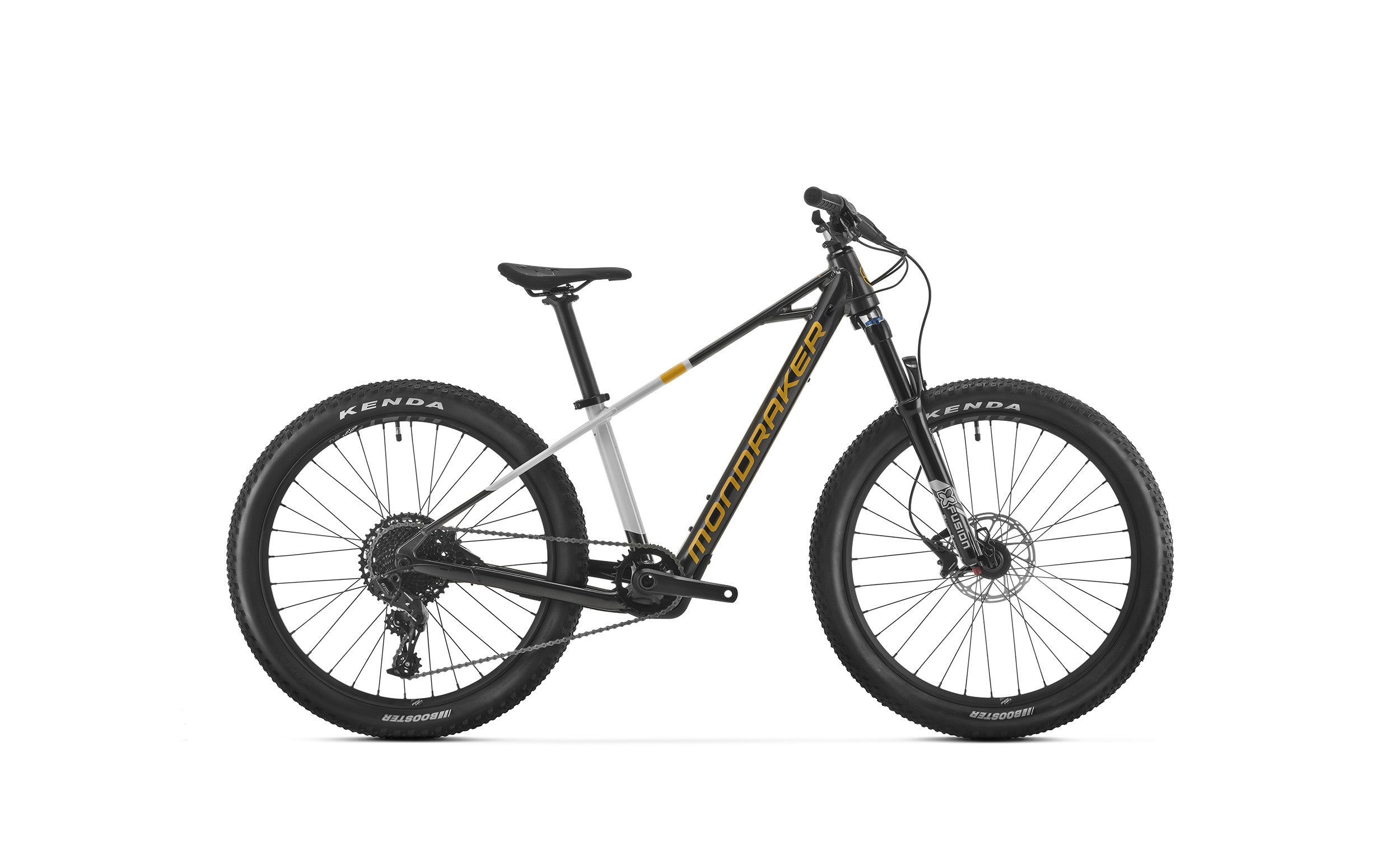

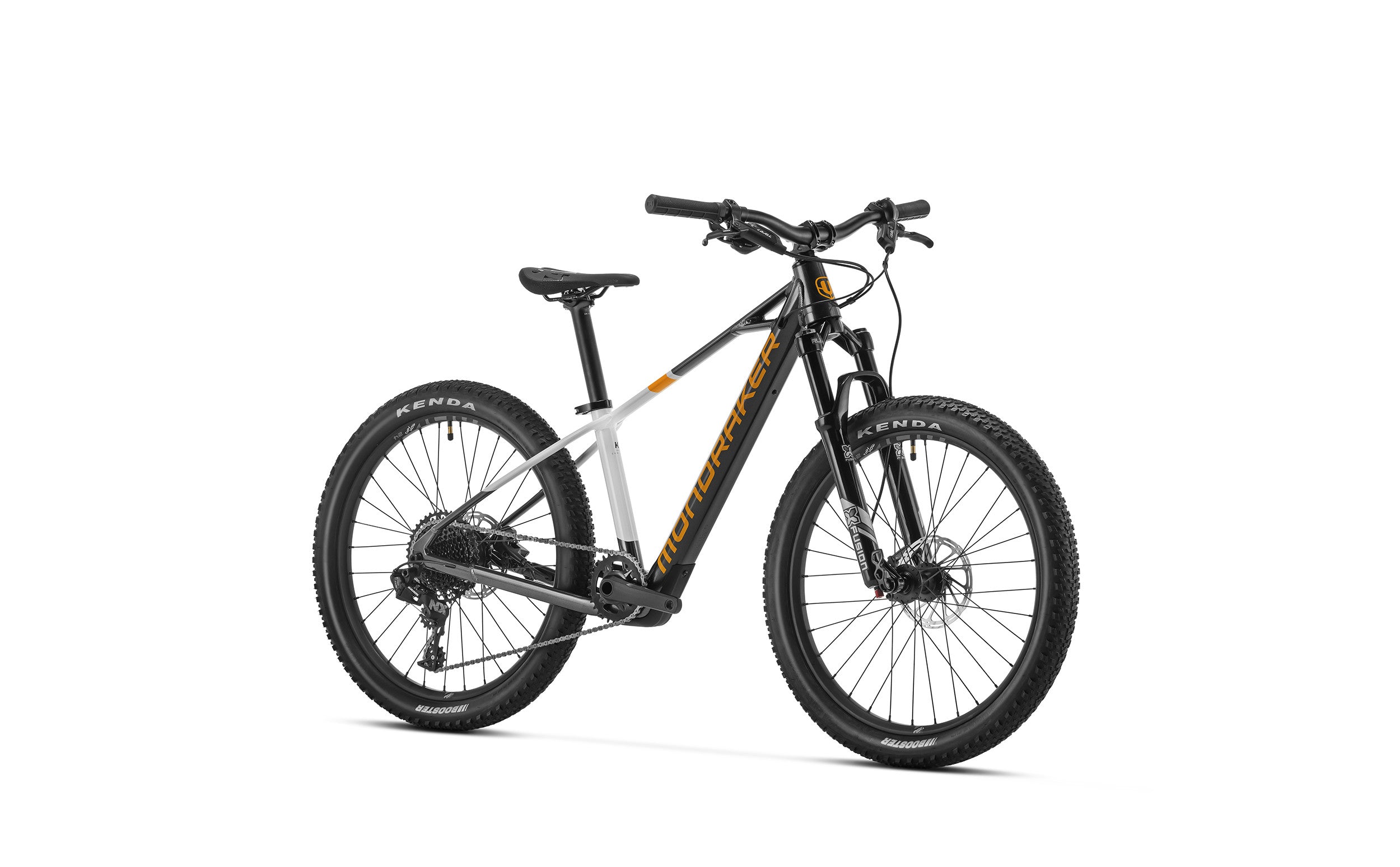

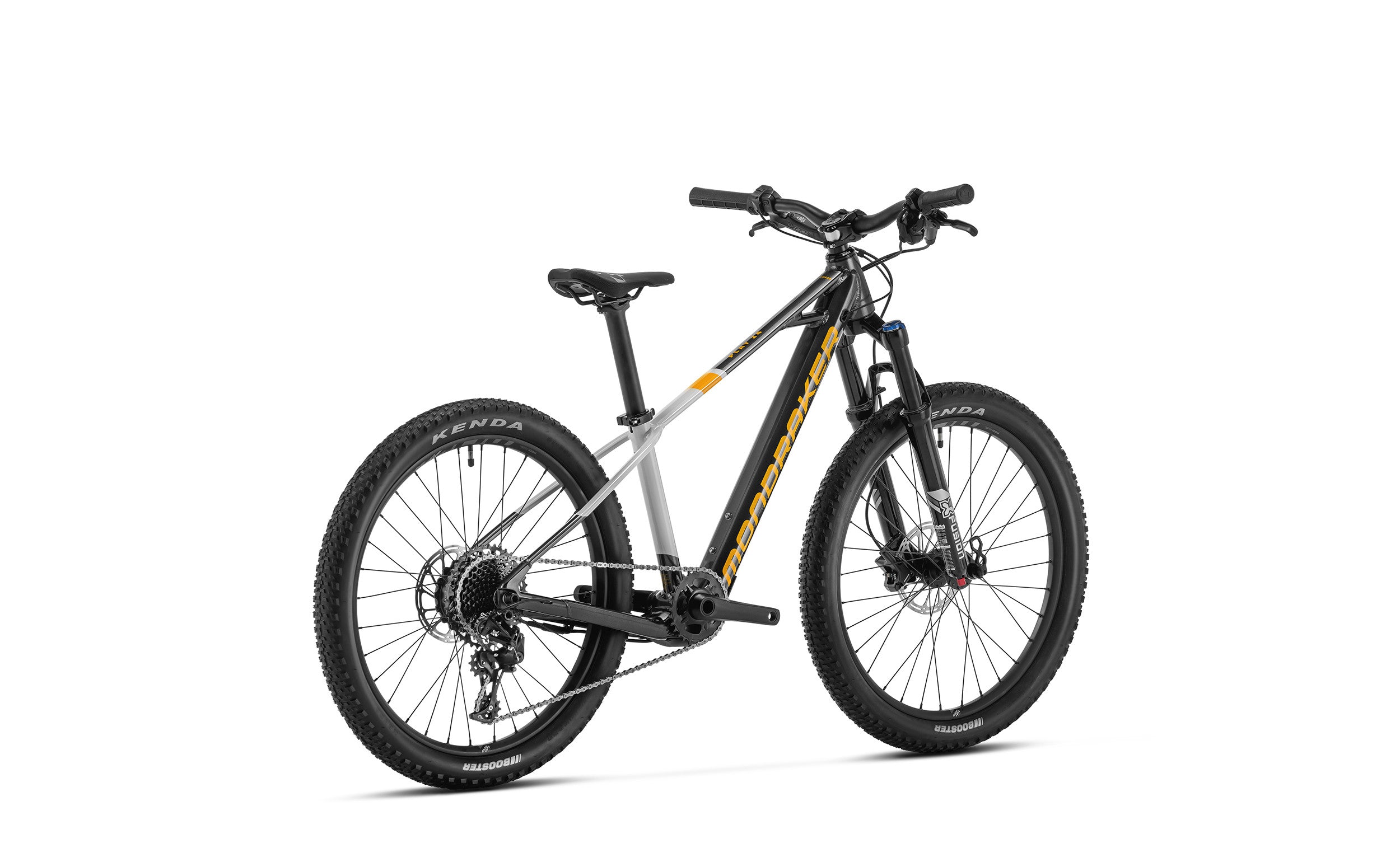

Introducing the Mondraker Play 24 Kids Electric Mountain Bike in Vortex Grey - a powerhouse of adventure for young riders! Perfectly crafted for the thrill-seekers of Liverpool, this electric bike combines cutting-edge technology with exceptional design to redefine the biking experience for your little ones.
Crafted with a Play 24 6061 Alloy Stealth evo frame, this bike boasts strength and durability while maintaining a lightweight construction, ensuring effortless handling for your child. The integrated internal non-removable battery ensures a sleek appearance while providing reliable power throughout their journey.
Equipped with an X-Fusion Velvet RL 26 fork featuring 100mm of travel, your child can conquer any terrain with ease. The fork's air spring and lockout feature allow for customizable performance tailored to their riding style.
Safety is paramount, which is why the Mondraker Play 24 comes fitted with Sram Level hydraulic disc brakes, offering reliable stopping power in any weather condition. Paired with Kenda Booster tires, your child can enjoy maximum traction and stability on every ride.
Designed with comfort in mind, the SDG Fly JR saddle provides support during longer rides, while Onoff Twin grips ensure a secure hold on the handlebars. With a range of ergonomic components including an Onoff Sulfur FG stem and MDK XC 1.0 handlebar, your child will experience superior control and confidence on the trails.
Powered by a Mahle-Ebikemotion X-35 motor and internal 250Wh battery, this electric mountain bike offers assistance when needed, allowing your child to explore further and conquer more challenging terrain without fatigue holding them back.
Whether they're tackling steep climbs or cruising through scenic trails, the Mondraker Play 24 Kids Electric Mountain Bike in Vortex Grey delivers an exhilarating ride every time. Give your child the gift of adventure and ignite their passion for cycling with this exceptional bike. Available now at our Liverpool store!
Specification
Frame:
Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes:
One size: 320mm
Fork:
X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminium stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset:
Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on
Seatpost:
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
Saddle:
SDG Fly JR
Front brake:
Sram Level, 2 piece calliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level, 2 piece calliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level, tooled reach adjust, lever pivot bushings
Rims:
MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub:
Mahle-Ebikemotion X-35, HG freehub
Front tire:
Kenda Booster 24x2.4 single compound 30TPI, wire bead
Rear tire:
Kenda Booster 24x2.4 single compound 30TPI, wire bead
Crankset:
Samox DM 28T steel, 127mm
Rings:
28T, steel
Bottom bracket:
BSA, 73mm
Pedals:
SDG Slater JR
Chain:
Sram PC1110 11s, Powerlock
Rear derailleur:
Sram NX, 11s, long cage, X-actuation 1:1
Shift levers:
Sram trigger NX 11s, X-actuation 1:1
Cassette:
Sram PG 1030 11-42T, 11s
Derailleur hanger:
Mondraker M077
Weight:
15.3 kg
Display:
Mahle-Ebikemotion
Motor:
Mahle-Ebikemotion X-35
Battery:
Mahle-Ebikemotion Internal 250Wh
