Specifications

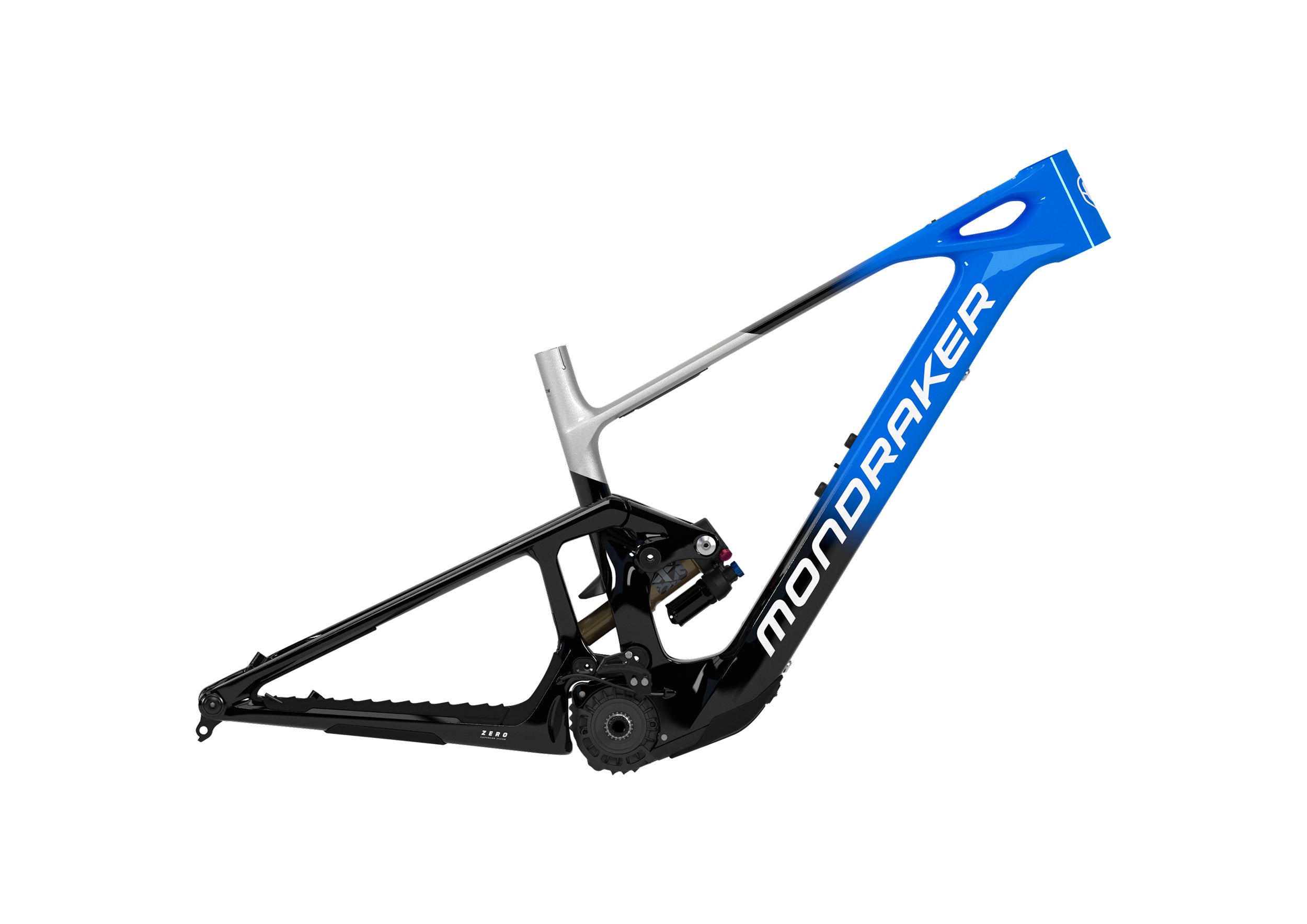

Frame: Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Derailleur hanger: Sram UDH
Others: Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Display: TQ HPR display V01
Motor: TQ HPR-50
Battery: TQ HPR-50 360Wh integrated and removable
