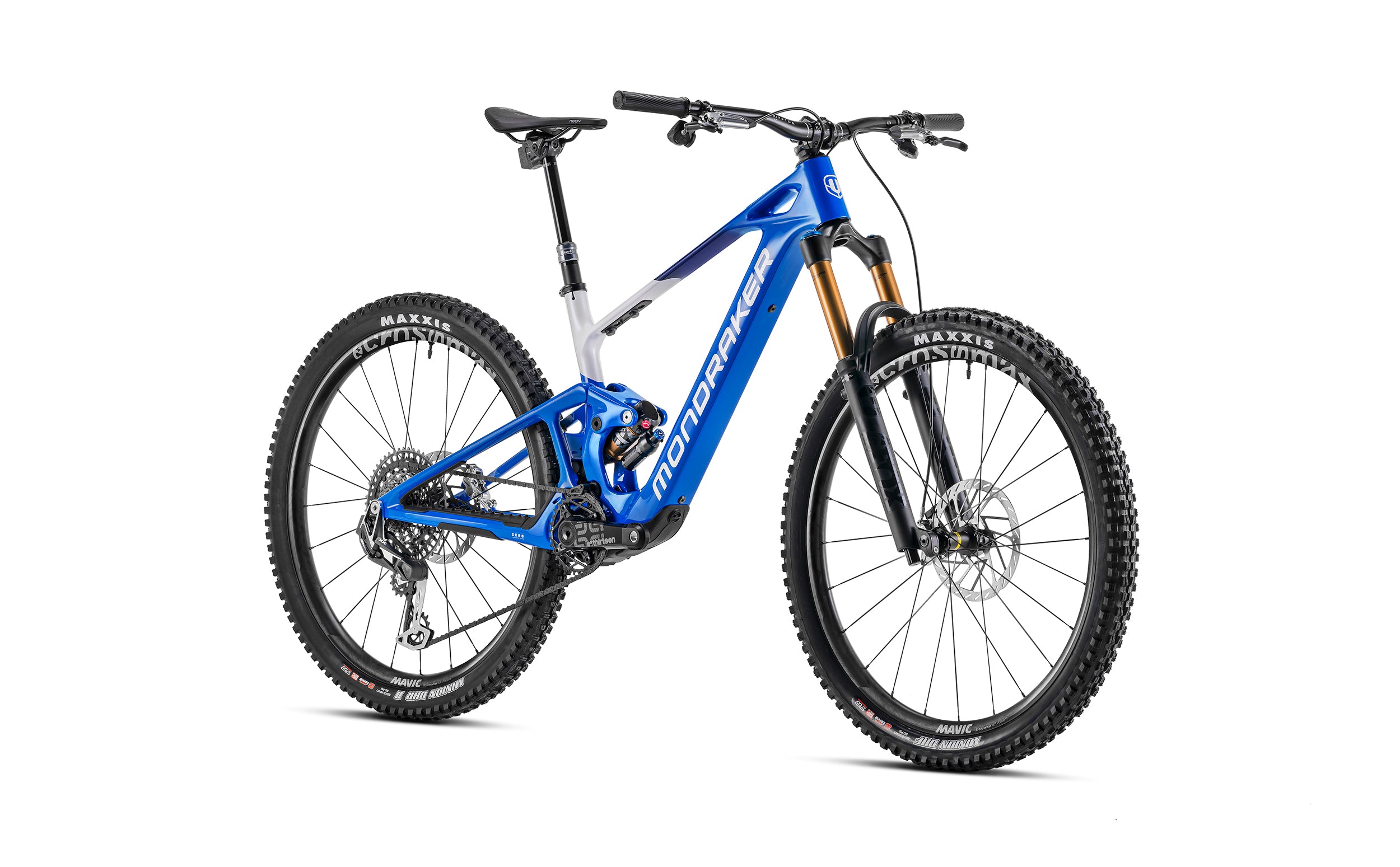

Experience Peak Performance with the Mondraker Neat RR SL Electric Mountain Bike in Carrera Blue!
Unleash the thrill of trail conquest with the Mondraker Neat RR SL Electric Mountain Bike. Crafted with precision and innovation, this bike is your gateway to adventure on Liverpool's rugged terrains. Designed to elevate your riding experience, here's what sets it apart:
Frame: The Stealth Air full Carbon frame with an e-Bike Optimized Zero Suspension System offers 150mm of travel, ensuring a smooth and controlled ride. Its Forward Geometry enhances stability, while the internal and removable battery keeps you powered up for extended journeys.
Rear Shock and Fork: Equipped with a Fox Float X Factory Kashima EVOL rear shock and Fox 36 29 Float GRIP2 Factory Kashima fork, this bike absorbs bumps with finesse. With adjustable settings for compression, rebound, and air preload, you can tailor the ride to your preference.
Precision Handling: The Onoff Krypton FG stem and Onoff Krypton Carbon handlebar provide precise control and responsiveness. Coupled with Onoff Desert grips, every twist and turn becomes an opportunity for excitement.
Braking Power: Sram Level Ultimate Stealth brakes deliver reliable stopping power, ensuring confidence on steep descents. Paired with HS2 rotors and carbon levers, you can push your limits with peace of mind.
Efficient Drivetrain: The Sram XX Eagle AXS rear derailleur and Sram Eagle AXS shift levers offer crisp, precise shifting across 12 speeds. Matched with a Sram XG-1295 cassette and E.13 TRS Race carbon crankset, every pedal stroke propels you forward effortlessly.
Trail-Ready Wheels: Mavic E-CrossMax Carbon XL R rims and Maxxis Minion tires provide the perfect balance of strength and agility. Tubeless-ready and equipped with Boost hubs, these wheels are built to handle whatever the trail throws your way.
Integrated Technology: The TQ HPR display V01 keeps you informed of vital stats, while the TQ HPR-50 motor and integrated 360Wh battery deliver powerful and efficient performance. With the optional external battery, you can extend your ride even further.
Designed for Every Rider: Available in four sizes - S, M, L, and XL - the Mondraker Neat RR SL ensures a comfortable fit for riders of all sizes. Plus, with a weight of just 17.9 kg, it's easy to maneuver through challenging terrain.
Conquer Liverpool's trails in style with the Mondraker Neat RR SL Electric Mountain Bike in Carrera Blue. Elevate your riding experience and embrace the thrill of the journey like never before. Get yours today and redefine what's possible on two wheels!
Specifications
Frame:
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Medium compression, medium rebound, air volume spacer 0.4
Fork:
Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle:
Fizik Terra Aidon Slim X5
Front brake:
Sram Level Ultimate Stealth, 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram Level Ultimate Stealth, 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Rims:
Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes:
Mavic 28 straight-pull double butted spokes
Front hub:
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings:
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain:
Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XG-1295, 10-52T, T-Type, 12s
Others:
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight:
17.9 kg
Display:
TQ HPR display V01
Motor:
TQ HPR-50
Battery:
TQ HPR-50 360Wh integrated and removable
