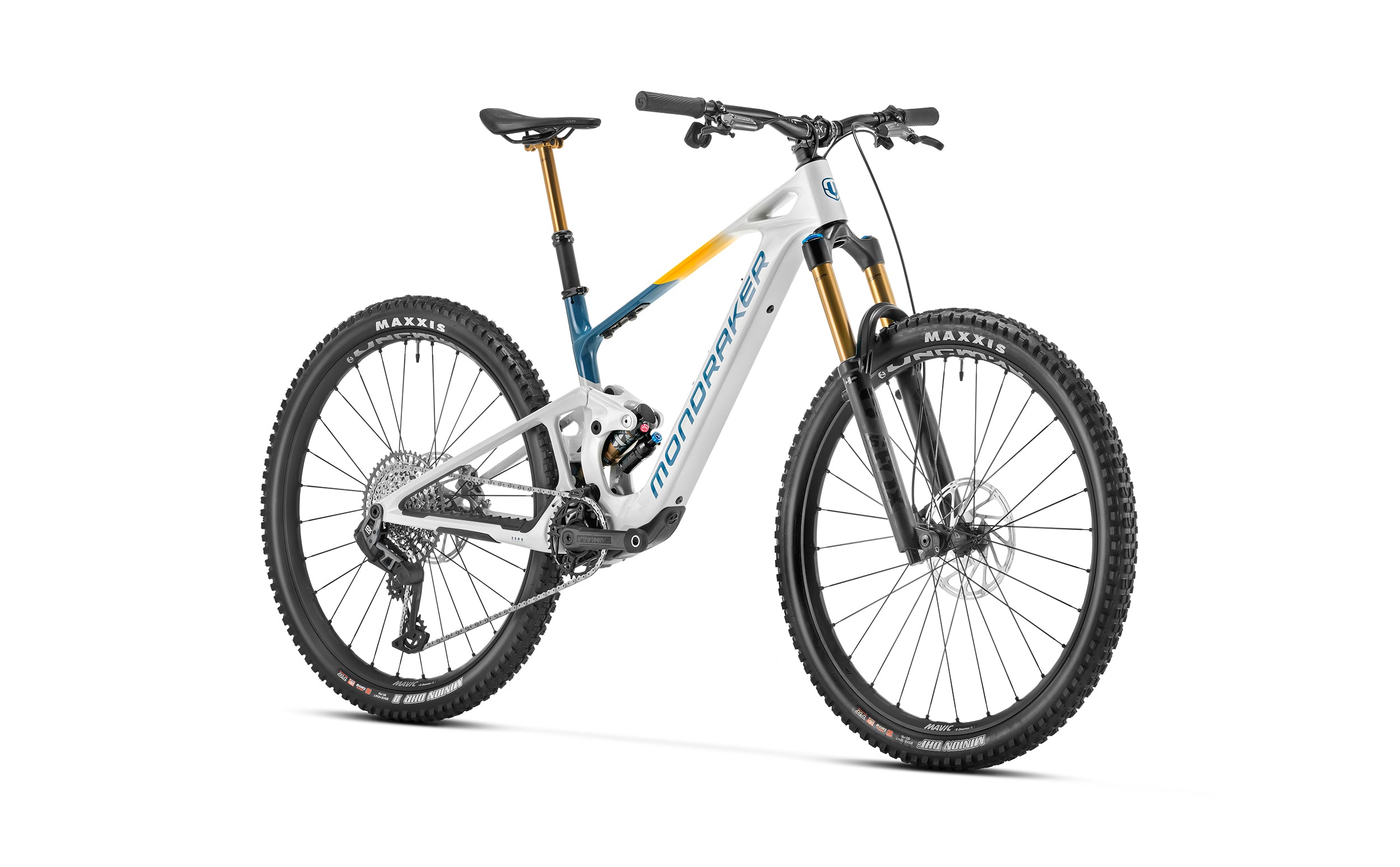

Introducing the Mondraker Neat RR Electric Mountain Bike in striking Bunker Grey Carbon, now available at our Liverpool store. Crafted to redefine your off-road adventures, this cutting-edge e-bike boasts unparalleled performance and style.
The Stealth Air full Carbon frame, equipped with the e-Bike Optimized Zero Suspension System, delivers 150mm of travel for a smooth and controlled ride over any terrain. Engineered with Mondraker's exclusive Forward Geometry, this bike ensures precise handling and stability, while the internal and removable battery keeps the design sleek and agile.
Available in a range of sizes from S to XL, the Neat RR caters to riders of all proportions, offering optimal comfort and control. Paired with a Fox Float X Factory Kashima rear shock and Fox 36 29 Float GRIP2 Factory Kashima fork, this bike absorbs bumps effortlessly, providing a plush riding experience.
Equipped with top-tier components, including Sram Level Bronze Stealth brakes, Mavic E-DeeMax SL rims, Maxxis Minion tires, and a Sram GX Eagle AXS drivetrain, the Neat RR delivers unmatched performance and reliability on every trail.
Designed for convenience and functionality, this bike features an Acros custom headset, Onoff Krypton Carbon handlebar, Fox Transfer Factory Kashima seatpost, and a Fizik Terra Aidon Slim X5 saddle, ensuring optimal fit and comfort for long rides.
Powered by the TQ HPR-50 motor and TQ HPR-50 360Wh integrated and removable battery, the Neat RR offers seamless electric assistance, enhancing your climbing capabilities and extending your ride duration.
Complete with the TQ HPR display V01, this bike provides intuitive control and real-time feedback, empowering you to maximize your performance on every ride.
With its sleek design, advanced technology, and uncompromising performance, the Mondraker Neat RR Electric Mountain Bike sets a new standard for e-mountain biking. Elevate your riding experience today with the ultimate trail companion, available now at our Liverpool store.
Specifications
Frame:
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Medium compression, medium rebound, air volume spacer 0.4
Fork:
Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle:
Fizik Terra Aidon Slim X5
Front brake:
Sram Level Bronze Stealth, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram Level Bronze Stealth, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram Level Bronze, tools-free reach adjust, lever pivot bushings
Rims:
Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes:
Mavic 28 straight-pull double butted spokes
Front hub:
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings:
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain:
Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1275, 10-52T, T-Type, 12s
Others:
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight:
18.3 kg
Display:
TQ HPR display V01
Motor:
TQ HPR-50
Battery:
TQ HPR-50 360Wh integrated and removable
