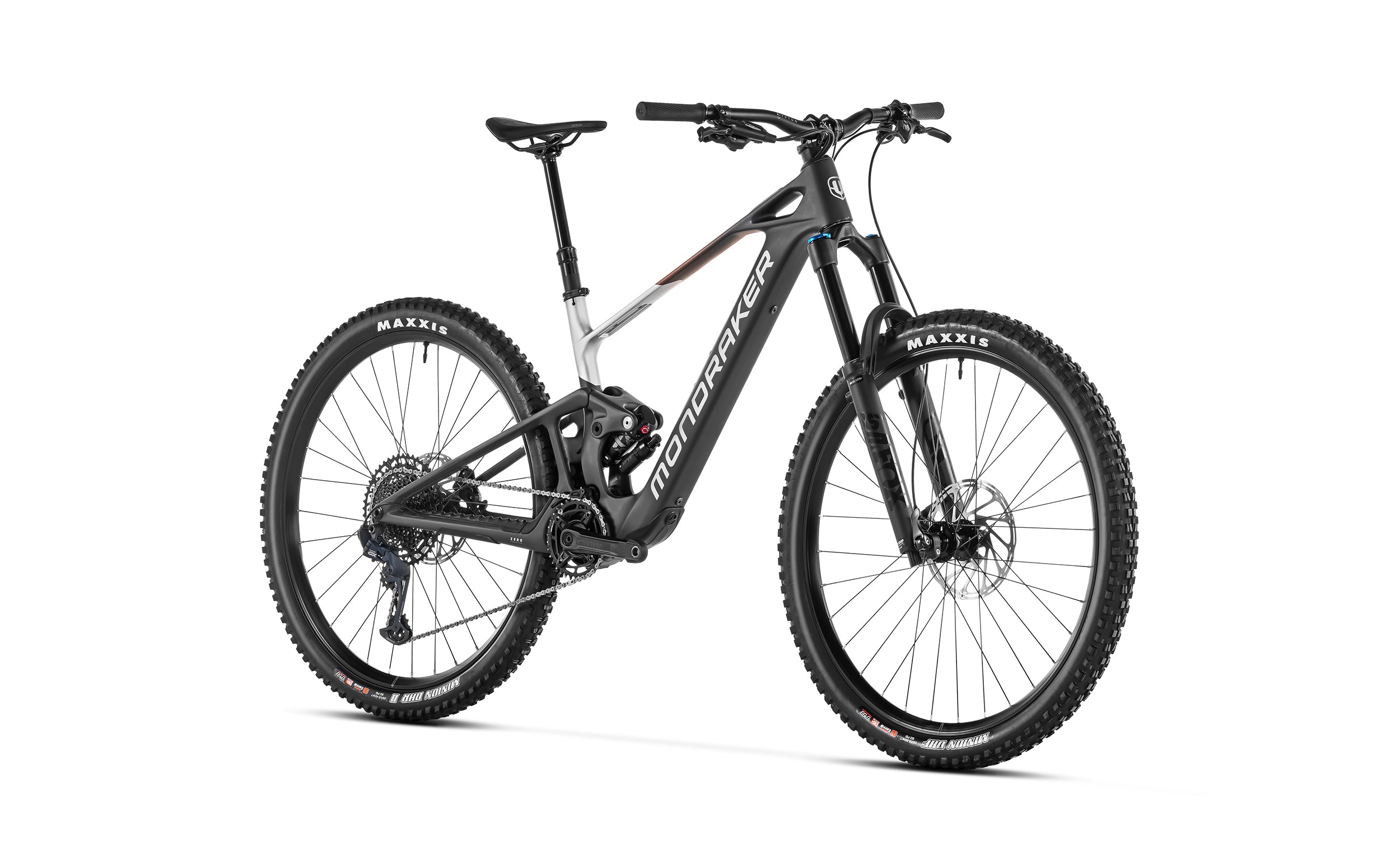

Mondraker Neat R Electric Mountain Bike - Carbon
Description
Discover the pinnacle of electric mountain biking with the Mondraker Neat R Carbon Electric Mountain Bike, now available at our Liverpool store. Crafted with precision engineering and cutting-edge technology, this bike is designed to elevate your off-road adventures to new heights.
The Stealth Air full Carbon frame boasts the e-Bike Optimized Zero Suspension System, delivering 150mm of travel for a smooth and responsive ride over any terrain. Its Forward Geometry ensures stability and agility, while the integrated and removable battery keeps you powered up for longer rides. Plus, the exclusive plastic motor covers provide added protection and durability.
Available in a range of sizes from S to XL, the Mondraker Neat R ensures a perfect fit for every rider. Paired with a Fox Float X Performance EVOL rear shock and Fox 36 29 Float GRIP EVOL Performance fork, this bike offers unparalleled control and comfort on the trails.
Equipped with high-performance components including Sram G2 R brakes, Mavic E-CrossRide rims, and Maxxis Minion tires, the Neat R delivers exceptional handling and traction in any conditions. The E.13 E*Spec Plus crankset and Sram GX Eagle derailleur provide smooth and reliable shifting, while the TQ HPR-50 motor offers powerful assistance on climbs and challenging terrain.
Navigate with ease thanks to the TQ HPR display V01, keeping you informed of crucial ride metrics and battery life. With a total weight of just 18.9 kg, this bike combines lightweight agility with unstoppable performance.
Experience the thrill of electric mountain biking like never before with the Mondraker Neat R Carbon Electric Mountain Bike. Visit our Liverpool store today and conquer the trails with confidence.
Specifications
Frame:
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Medium compression, medium rebound, air volume spacer 0.4
Fork:
Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
Fizik Terra Aidon Slim X5
Front brake:
Sram G2 R, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims:
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes:
Mavic J-bend double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1230, 11-50T, 12s
Derailleur hanger:
Sram UDH
Others:
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight:
18.9 kg
Display:
TQ HPR display V01
Motor:
TQ HPR-50
Battery:
TQ HPR-50 360Wh integrated and removable
