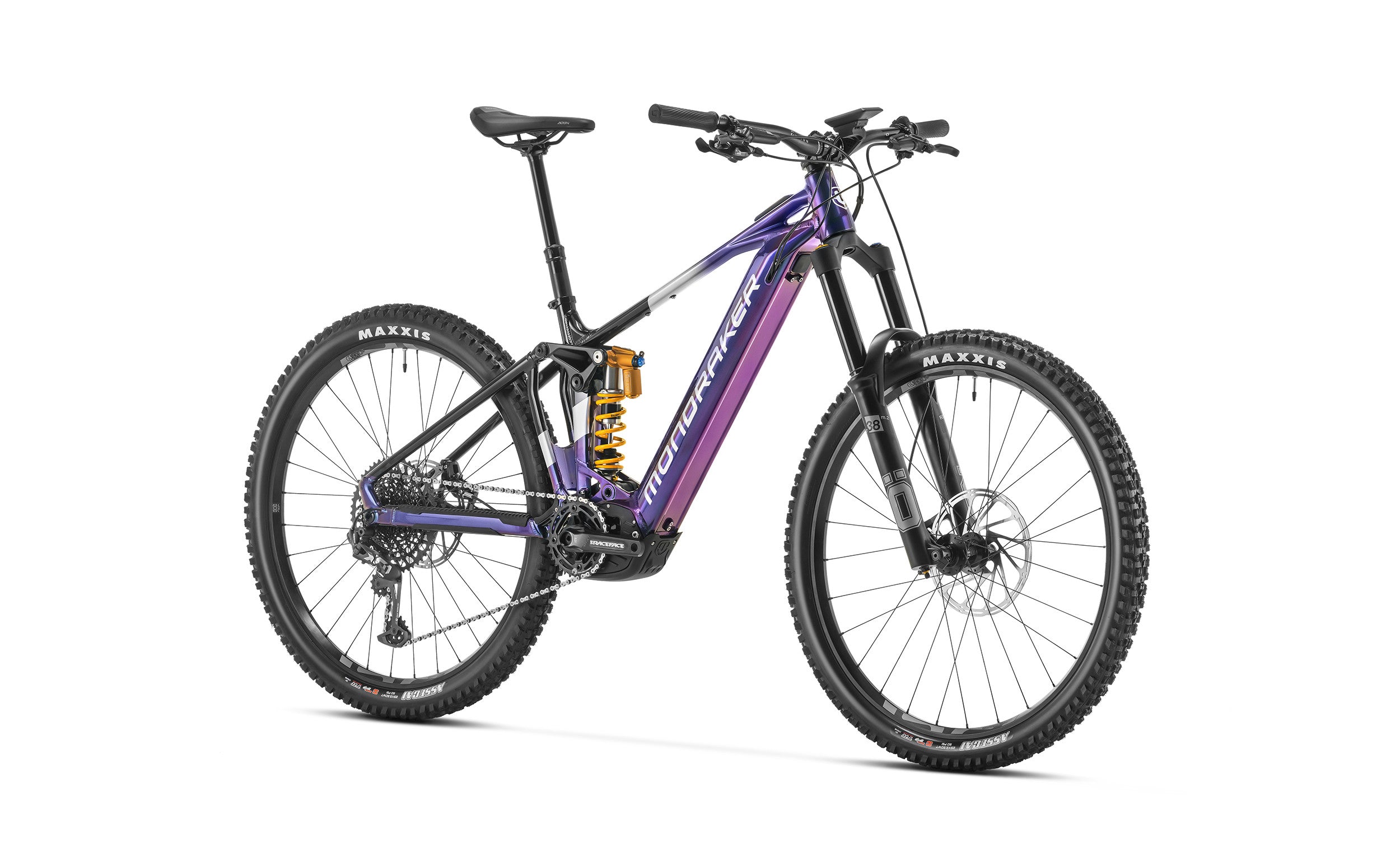

Experience the thrill of conquering any terrain with the Mondraker Level XR Electric Mountain Bike in Polaris colour, now available at our Liverpool store. Crafted with precision and power, this bike is engineered to elevate your off-road adventures to new heights.
The Level XR boasts a robust Level 6061 Alloy Stealth Evo frame, featuring the e-Bike Optimized Zero Suspension System with 170mm travel. Its Forward Geometry ensures stability and control, while the internal non-removable battery keeps the design sleek and aerodynamic. With Boost 12x148mm rear axle and integrated dropout speed sensor, every ride is optimized for performance.
Available in four sizes (S, M, L, XL), the Level XR accommodates riders of various heights, ensuring a comfortable fit for everyone. Its Öhlins TTX22M.2 rear shock and Öhlins RXF 38 M.2 fork provide unparalleled suspension, offering settings for high-speed compression, rebound, and more, tailored to your preferences.
Designed for precision handling, the Level XR features Onoff Krypton Carbon handlebars and Onoff Krypton FG stem, along with Onoff Desert grips for maximum control. The Onoff Pija dropper seatpost, equipped with a 1X Remote lever, ensures seamless adjustments on the fly.
Equipped with powerful Sram Code Silver Stealth brakes, oversized 4-piston callipers, and Centerline rotors, the Level XR delivers unmatched stopping power and control. Its e*thirteen E*Spec Plus rims and Maxxis Assegai tires ensure stability and traction on any terrain.
Powered by Bosch Performance Line CX Cruise motor and Bosch Powertube 750Wh battery, the Level XR offers reliable performance and long-lasting battery life. Control your ride with the Bosch Kiox 500 display and Bosch Mini Remote, experiencing seamless integration and intuitive operation.
With its cutting-edge technology and premium components, the Mondraker Level XR Electric Mountain Bike is ready to take your off-road adventures to the next level. Visit our Liverpool store today and experience the thrill of limitless exploration with the Level XR.
Specifications
Frame:
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Öhlins TTX22M.2 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs
Fork:
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes:
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram GX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M068
Weight:
25.9 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
