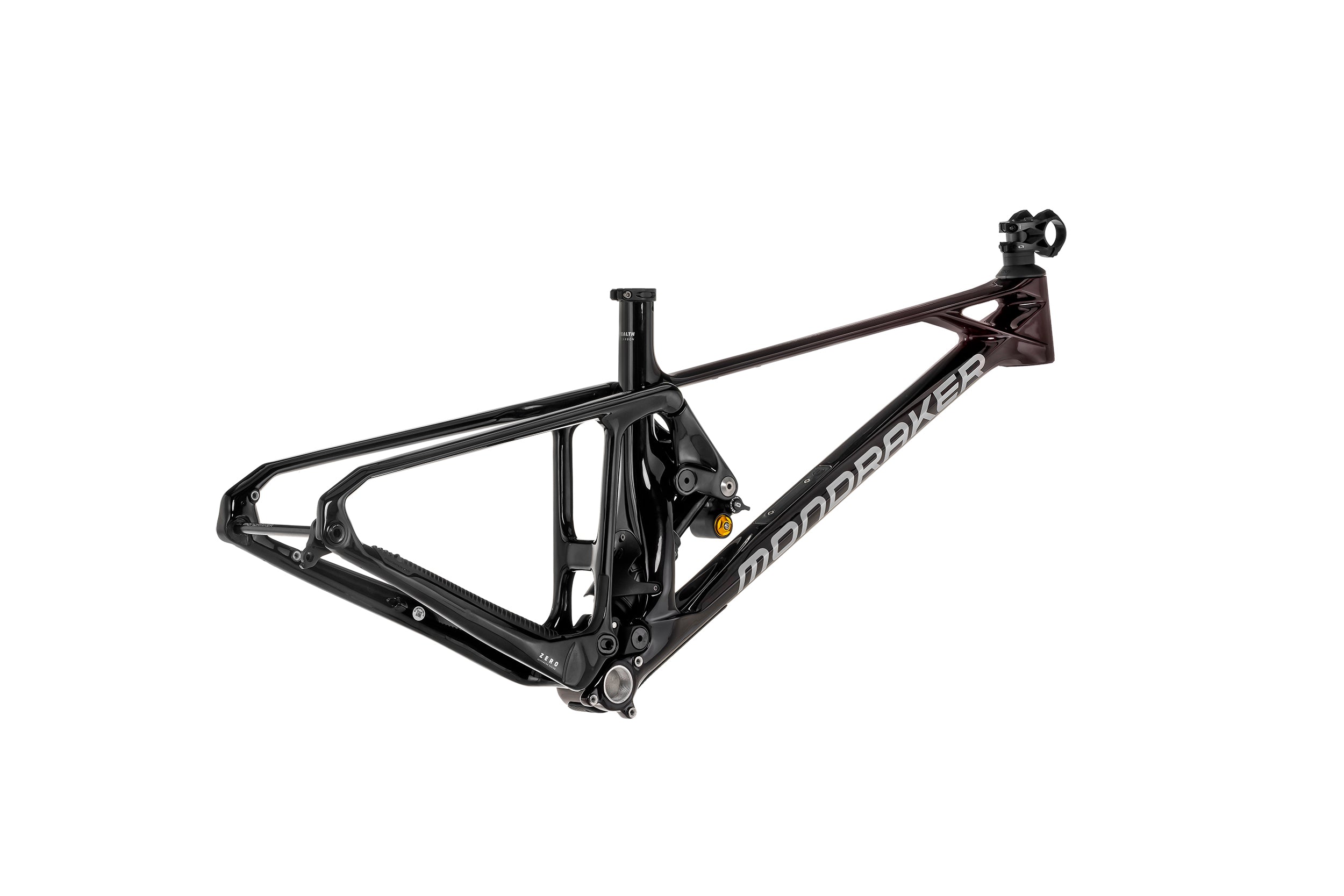

Introducing the Mondraker Foxy Carbon XR Mountain Bike Frameset in Translucent Red Carbon, a pinnacle of performance and style. Crafted for thrill-seekers and trail conquerors, this frameset embodies cutting-edge design and precision engineering.
Constructed from Foxy 29 Stealth Air full Carbon, this frameset boasts the innovative Zero Suspension System, delivering 150mm of travel for a plush and responsive ride. Its Forward Geometry ensures stability and agility, while the Carbon Monoblock upper link enhances durability and performance. With Boost 12x148mm rear axle and tapered head tube, every ride is infused with confidence and control.
Available in a range of sizes (S: 380mm, M: 420mm, L: 450mm, XL: 500mm), this frameset caters to riders of all proportions, ensuring a personalized fit for maximum comfort and efficiency.
Equipped with an Öhlins TTX Air rear shock (205x65mm), featuring high-speed compression lever with climb mode, low-speed compression, rebound, and air preload adjustments, you can fine-tune your ride to perfection. The Acros custom headset ensures smooth steering with angular contact bearings, while the Onoff Krypton FG stem (30mm) adds stability and control.
Designed for seamless integration, this frameset features HHG internal cable routing and includes custom frame protectors for added durability. Plus, with an Sram UDH derailleur hanger, compatibility with your preferred drivetrain is assured.
Whether you're tackling rugged trails or chasing adrenaline-fueled adventures, the Mondraker Foxy Carbon XR Mountain Bike Frameset in Translucent Red Carbon sets the standard for performance and style. Elevate your riding experience and unleash your full potential with this exceptional frameset, available now at our Liverpool store.
Specifications
Frame:
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
Derailleur hanger:
Sram UDH
