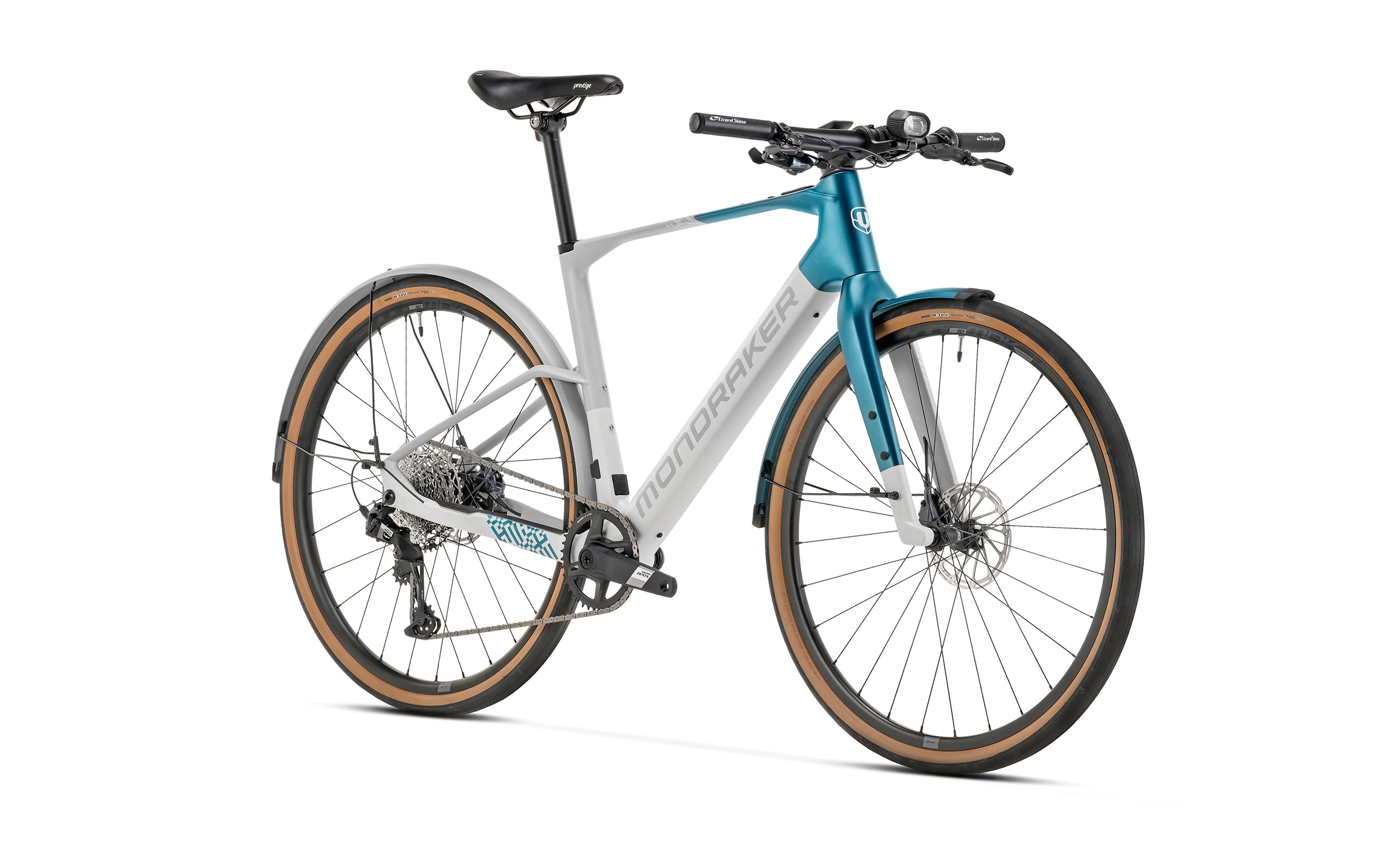

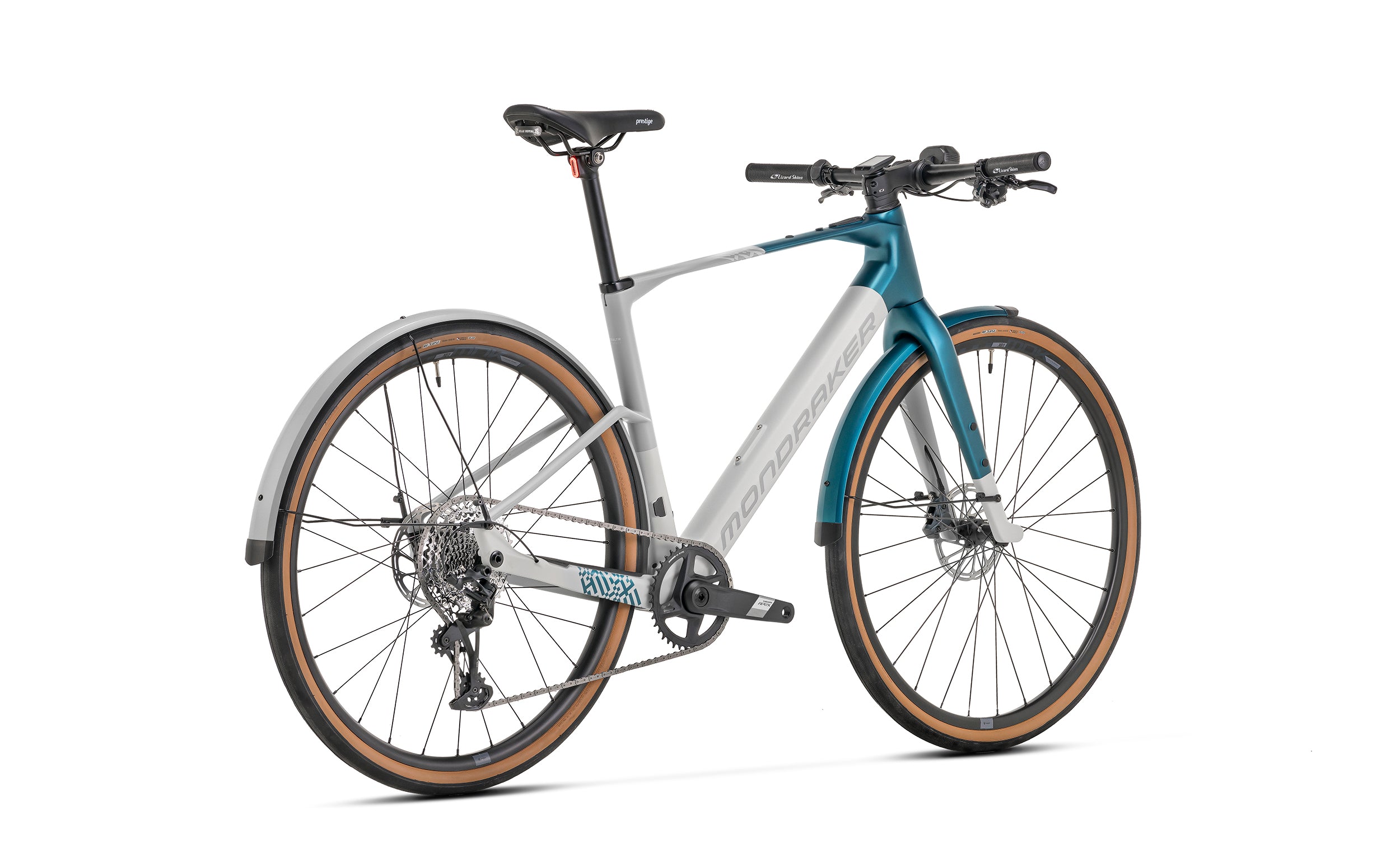

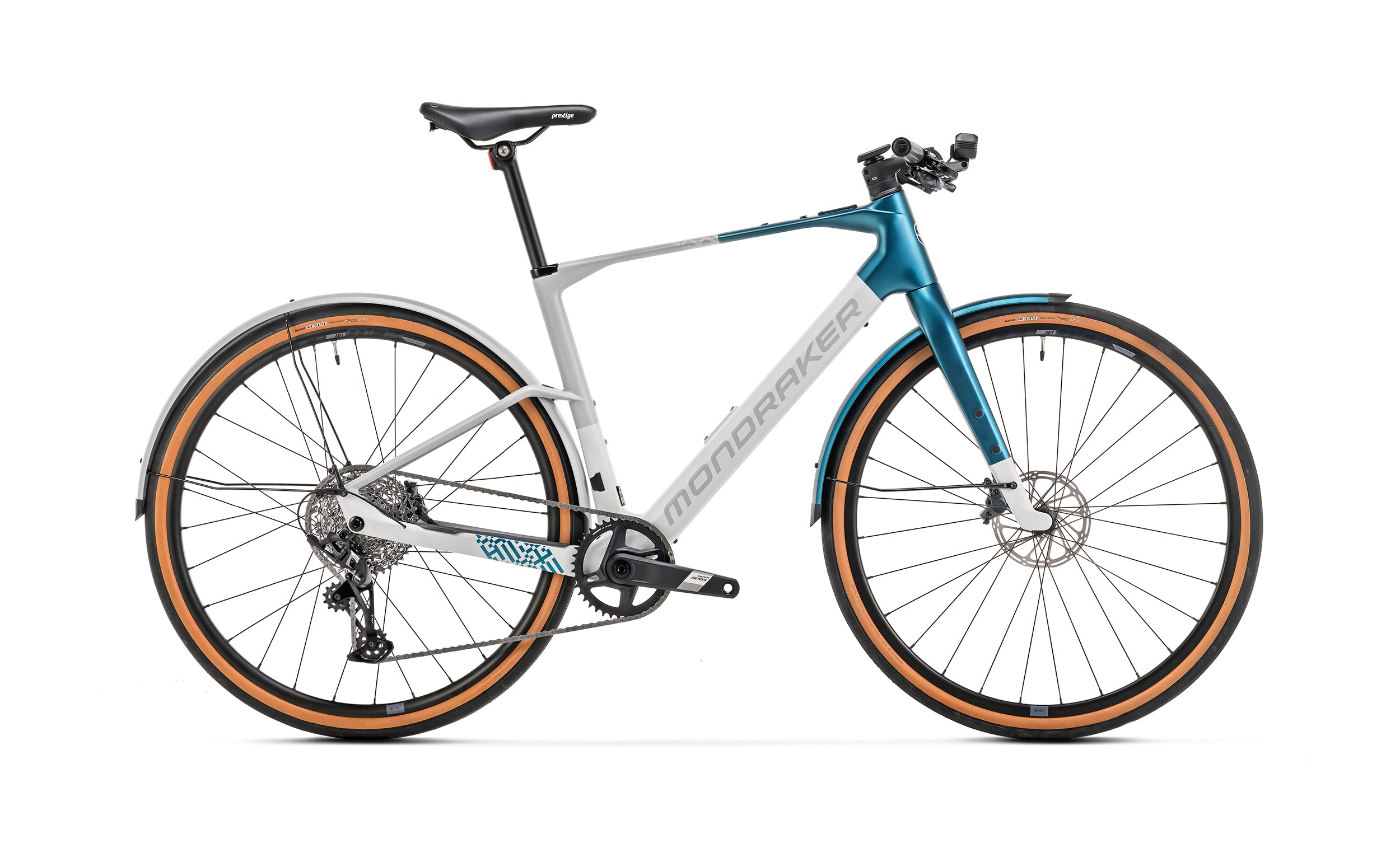

Introducing the Mondraker Dusty X Electric Gravel Bike in Bunker Grey - your ultimate companion for conquering the urban jungle or exploring the off-beaten paths with ease. Crafted with precision and innovation, this electric gravel bike blends Mondraker's signature design with cutting-edge technology to deliver a ride like no other.
Constructed with a Dusty Stealth Air Carbon frame, this bike offers unparalleled strength and agility. Its integrated internal non-removable battery ensures a sleek silhouette while providing reliable power for your adventures. With options for both 1X and 2X drivetrain designs, the Dusty X offers versatility to match your riding style.
Available in four sizes - S, M, L, and XL - the Dusty X ensures a perfect fit for riders of all heights. Paired with a Stealth Air Carbon fork and OnOff gravel components, every detail is meticulously designed to enhance your riding experience.
Equipped with a powerful Mahle X20 Drive Unit motor and Mahle X20 IX350Wh battery, this bike delivers smooth and efficient pedal assistance, allowing you to tackle challenging terrains with confidence. The optional external battery provides extended range for those longer adventures.
With Sram Apex components, including the wide-range cassette and Apex XPLR rear derailleur, shifting is precise and reliable, ensuring seamless transitions between gears. The Sram Level Silver brakes offer reliable stopping power, while the Maxxis Re-fuse tires provide excellent traction and durability on various surfaces.
Designed for comfort and performance, the Dusty X features an MDK Urban 1.0 handlebar, Selle Royal Prestige saddle, and Lizard Skins DSP grips. Plus, with integrated features like a Supernova LED rear light and 150LUX front light, you'll ride safely any time of day.
Experience the thrill of electric gravel biking like never before with the Mondraker Dusty X. Whether you're commuting through the city streets or exploring rugged trails, this bike is ready to take you on your next adventure. Discover the freedom of limitless exploration with the Dusty X Electric Gravel Bike - now available in Bunker Grey at our Liverpool store.
Specification:
Frame:
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes:
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork:
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset:
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm
Handlebar:
MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips:
Lizard Skins DSP 30.3
Seatpost:
Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm
Saddle:
Selle Royal Prestige 139mm
Front brake:
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level Silver, tools-free reach adjust, lever pivot bearings
Rims:
MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
Spokes:
CN round stainless steel
Front hub:
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub:
Mahle X20 Drive Unit, HG freehub
Front tire:
Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Rear tire:
Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Crankset:
SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
Rings:
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket:
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain:
Sram Apex, 12s, Powerlock
Rear derrailleur:
Sram Apex XPLR 12s
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1231 11-44, 12s
Derailleur hanger:
Mondraker M076
Others:
150LUX Front light. Optional external battery: Mahle e185Wh
Weight:
14.55 kg
Display:
Pulsar One Wireless/ DUO remote
Motor:
Mahle X20 Drive Unit
Battery:
Mahle X20 IX350Wh
