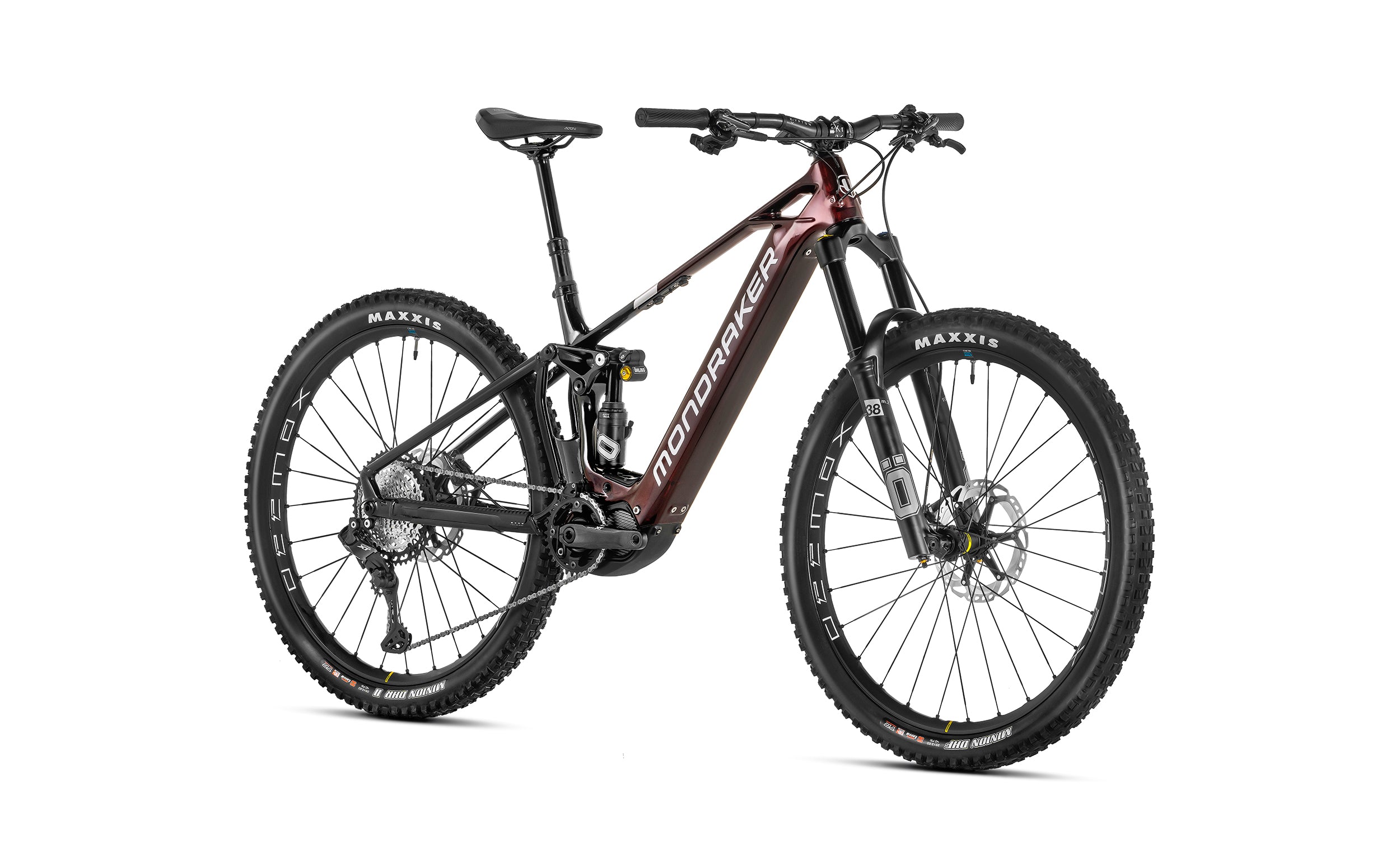

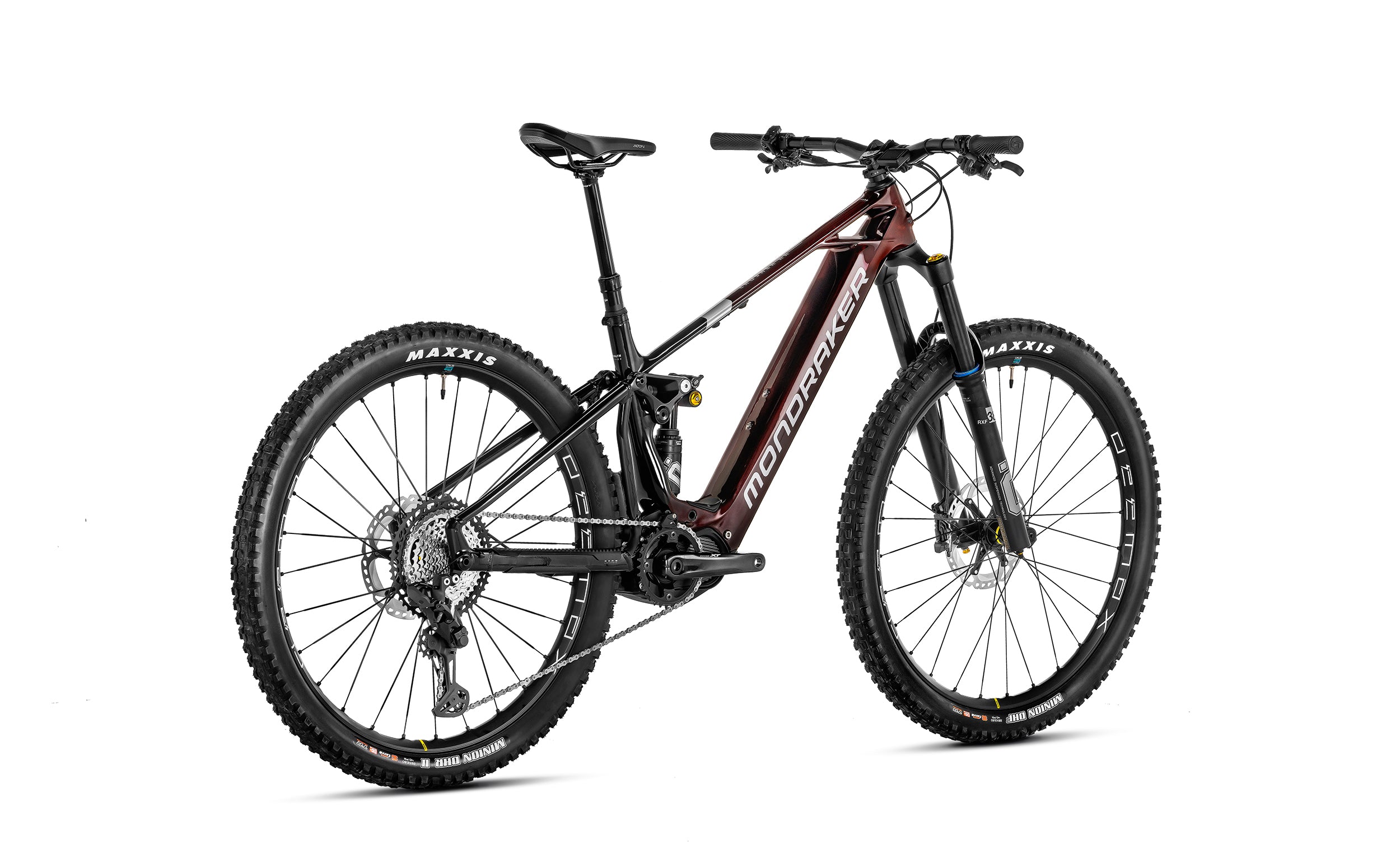

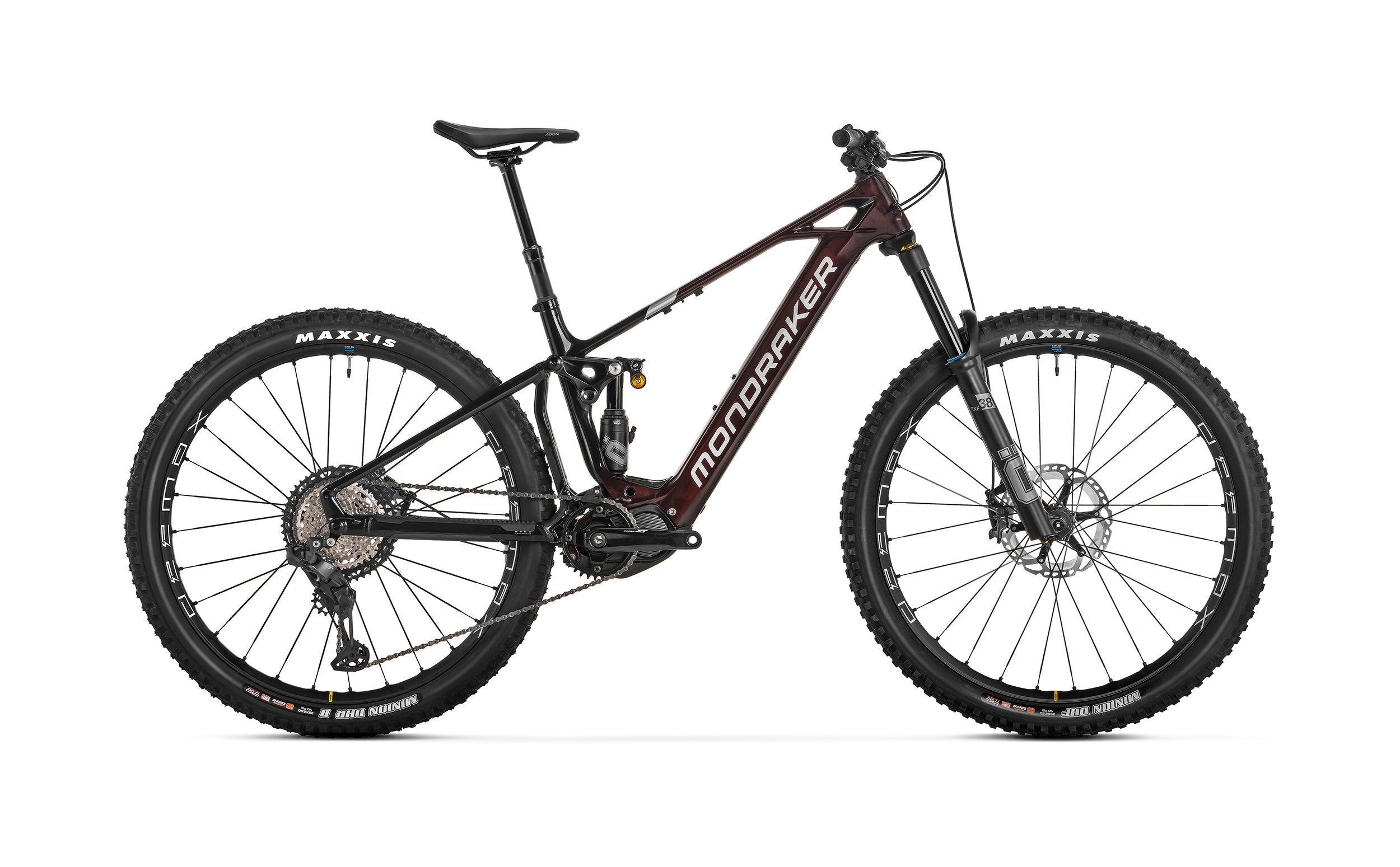

Introducing the Mondraker Crusher RR Electric Mountain Bike in Translucent Red Carbon – the pinnacle of cutting-edge technology and performance for the adventurous rider. Designed to conquer the toughest trails with ease, this bike is a true masterpiece of engineering and innovation.
Crafted with precision, the Crusher features a Crusher Stealth Air Carbon front triangle combined with a Stealth Alloy rear triangle, ensuring optimal strength and agility on the trail. Its e-Bike Optimized Zero Suspension System with 150mm travel delivers a smooth and controlled ride, while the Forward Geometry enhances stability and maneuverability, allowing you to tackle any terrain with confidence.
Powered by a Shimano STEPS EP801 motor and Simplo internal 720Wh G3 battery, the Crusher offers unmatched performance and endurance, so you can explore further and push your limits like never before. And with the integrated dropout speed sensor and exclusive plastic motor covers, every ride is not only exhilarating but also worry-free.
Equipped with top-of-the-line components, including an Öhlins TTX Air rear shock and Öhlins RXF 38 M.2 fork, the Crusher ensures superior handling and responsiveness in any situation. Shimano Deore XT hydraulic disc brakes provide reliable stopping power, while the Mavic E-Deemax S rims and Maxxis Minion tires offer exceptional traction and durability on the trail.
Designed for optimal comfort and control, the Crusher features an Onoff Krypton Carbon handlebar, Onoff Pija dropper seatpost, and FIZIK Terra Aidon X5 saddle, ensuring a comfortable and ergonomic riding experience, even on the longest rides.
Whether you're tackling steep climbs or charging down technical descents, the Mondraker Crusher RR Electric Mountain Bike is your ultimate companion for conquering the trails with style and confidence. Experience the thrill of off-road adventures like never before – get your Crusher RR today and unleash your full potential on the trail. Available now at our Liverpool store!
Specifications
Frame:
Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork:
Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm + SHIMANO SL-MT800-IL lever
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Shimano Deore XT M8120, 4-piston calliper, MT-800 Ice-Tech 203mm Center Lock
Rear brake:
Shimano Deore XT M8120, 4-piston calliper, MT-810 Ice-Tech 203mm Center Lock
Brake lever:
Shimano Deore XT M8120
Rims:
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes:
Mavic straight-pull double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, Center Lock
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratchet system, Center Lock, MS freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
Shimano Steps XT FC-8150 ebike, 165mm
Rings:
Shimano EP801, 34T, 104 BCD
Chain:
Shimano Deore XT M8100
Rear derailleur:
Shimano Deore XT M8150-GS Di2 12s shadow plus, direct mount
Shift levers:
Shimano XT Di2 SW-M8150
Cassette:
Shimano Deore XT M8100, 10-51 12s
Derailleur hanger@
Mondraker M068
Weight:
23.4 kg
Display:
Shimano EN600
Motor:
Shimano STEPS EP801
Battery:
Simplo internal 720Wh G3
