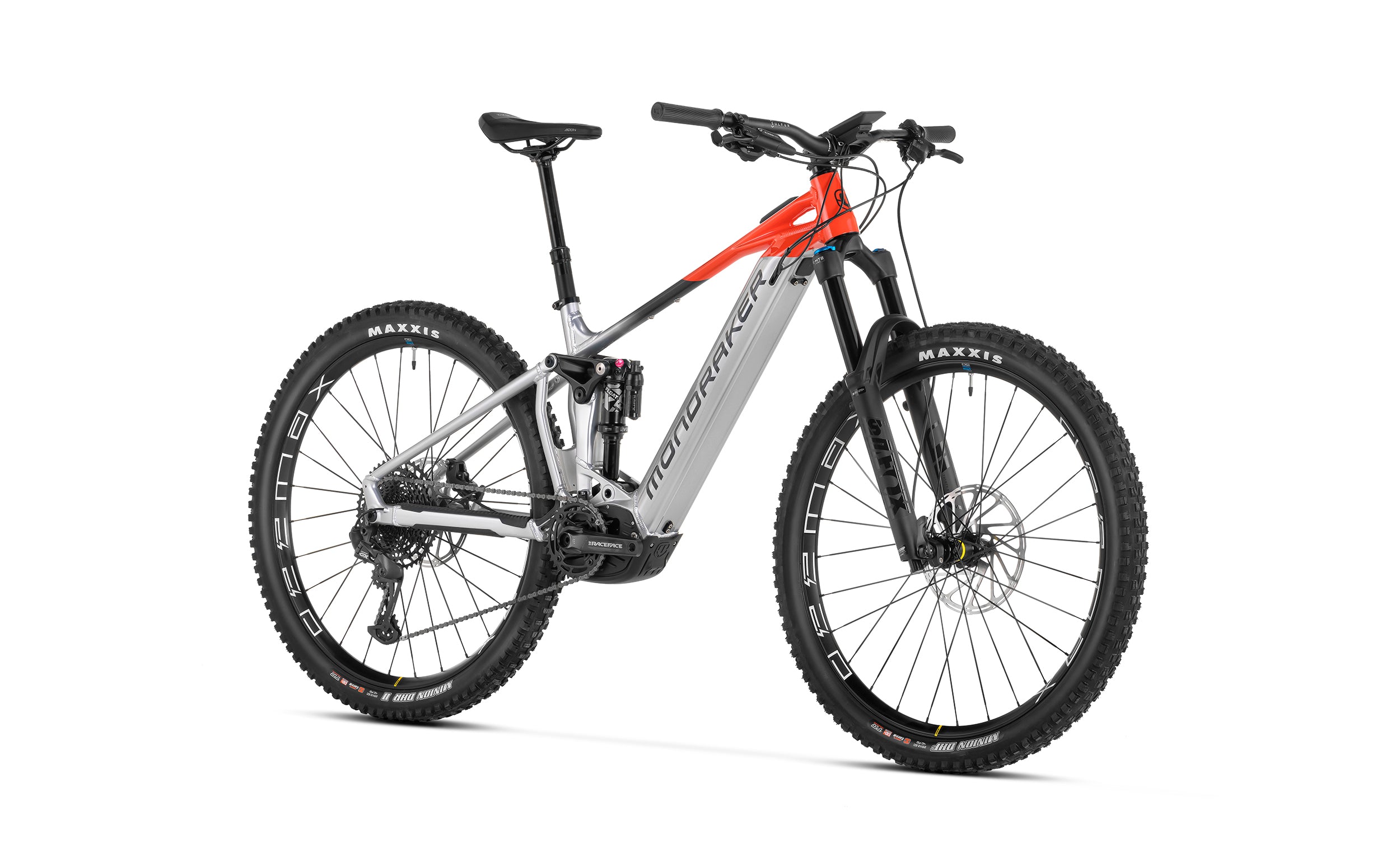

Mondraker Crafty R Electric Mountain Bike - Flame Red
Description
Discover the exhilarating ride of the Mondraker Crafty R Electric Mountain Bike in Flame Red, now available at our Liverpool store. Engineered for adventure seekers and trailblazers, this bike blends cutting-edge technology with robust design, ensuring an electrifying experience on any terrain.
Crafted with a Crafty 6061 Alloy Stealth Evo frame, this bike boasts the e-Bike Optimized Zero Suspension System, delivering 150mm of travel for smooth rides even over the roughest paths. The forward geometry enhances stability while the internal non-removable battery ensures a sleek silhouette. Plus, with Boost 12x148mm rear axle and tapered head tube, you're guaranteed optimal performance and durability.
Choose from a range of sizes to find your perfect fit: S (380mm), M (420mm), L (450mm), or XL (490mm), ensuring comfort and control for every rider.
Feel the thrill of the Fox Float-X LV Performance rear shock and Fox 38 29 Float FIT GRIP EVOL Performance fork, offering precise adjustments for your riding style. Combined with the Onoff Saturn tapered headset, Onoff Sulfur stem, and handlebar, you'll experience unparalleled handling and responsiveness on every ride.
Bringing you to a confident stop are the Sram DB8 oversized 4-piston brakes, while the Mavic E-Deemax rims and Maxxis Minion tires provide superior traction and durability.
Powering your adventure is the Bosch Performance Line CX Cruise GEN4 SMART SYSTEM motor, paired with a Bosch Powertube 750Wh battery for long-lasting performance. Control your ride with the Bosch Kiox 500 display or Bosch Mini Remote, ensuring easy access to essential information and settings.
With a total weight of just 25.9 kg, this bike offers agility without sacrificing strength. Whether you're conquering steep climbs or tearing through downhill trails, the Mondraker Crafty R Electric Mountain Bike in Flame Red is your ultimate companion for off-road adventures. Experience the thrill today at our Liverpool store and redefine your mountain biking experience.
Specifications
Frame:
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
medium compression, medium rebound, air volume spacer 0.2
Fork:
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram DB8, oversized 4-piston calliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram DB8, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes:
Mavic J-bend double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derrailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
25.9 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
