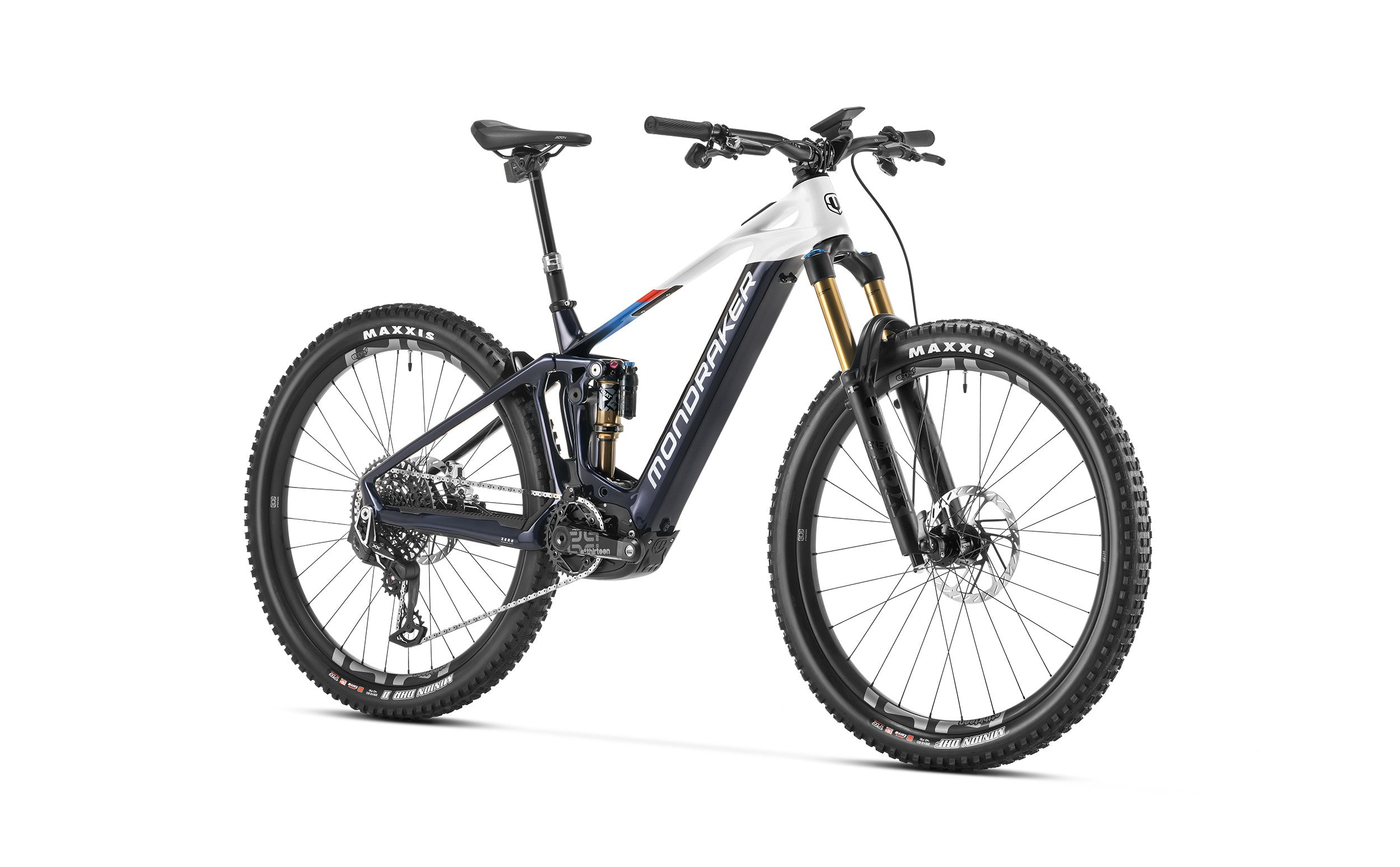

Introducing the Mondraker Crafty Carbon RR SL Electric Mountain Bike in stunning Midnight Blue – a cutting-edge blend of power, precision, and performance designed to conquer any trail with finesse. Exclusively available at our Liverpool store, this masterpiece of engineering is primed to redefine your off-road adventures.
Crafted around a Crafty Stealth Air full Carbon frame, this e-bike boasts the revolutionary Zero Suspension System, delivering 150mm of travel for unparalleled comfort and control. Its Forward Geometry ensures optimal handling, while the internal non-removable battery keeps the design sleek and aerodynamic. The Boost 12x148mm rear axle and tapered head tube enhance stability and responsiveness, setting a new standard for e-bike agility.
Equipped with a Fox Float X Factory Kashima rear shock and Fox 38 29 Float GRIP2 Factory Kashima fork, this bike glides over obstacles with grace, offering customizable settings for a ride tailored to your preferences. The Acros custom headset and Onoff components further elevate the riding experience, providing reliability and precision in every turn.
Bringing the Mondraker Crafty Carbon RR SL to a halt is effortless thanks to the Sram Code Ultimate Stealth brakes, offering unrivalled stopping power and control even in the most demanding conditions. Paired with e*thirteen Race Carbon Enduro rims and Maxxis Minion tires, this bike delivers traction and durability for conquering any terrain with confidence.
Under the hood, the Bosch Performance Line CX Cruise motor paired with a Bosch Powertube 750Wh battery ensures relentless power and endurance, propelling you forward with ease. With the Bosch Kiox 500 display, you'll have all the information you need at your fingertips, allowing you to focus on the thrill of the ride.
Whether you're tackling steep climbs or descending technical trails, the Mondraker Crafty Carbon RR SL Electric Mountain Bike is your ultimate companion for pushing boundaries and exploring new horizons. Visit our Liverpool store today and experience the future of off-road cycling first-hand. Unlock adventure, embrace freedom, and ride like never before with Mondraker.
Specifications
Frame:
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float X Factory Kashima EVOL 205x65mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
Medium compression, Medium rebound, 0.2 volume spacer
Fork:
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram Code Ultimate Stealth, oversized 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Ultimate Stealth, oversized 4-piston calliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
E.13 TRS Race carbon ebike, 165mm
Rings:
Sram T-Type 34T, steel, narrow-wide, 104 BCD
Chain:
Sram XX Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1297, 10-52T, T-Type, 12s
Weight:
23.3 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
