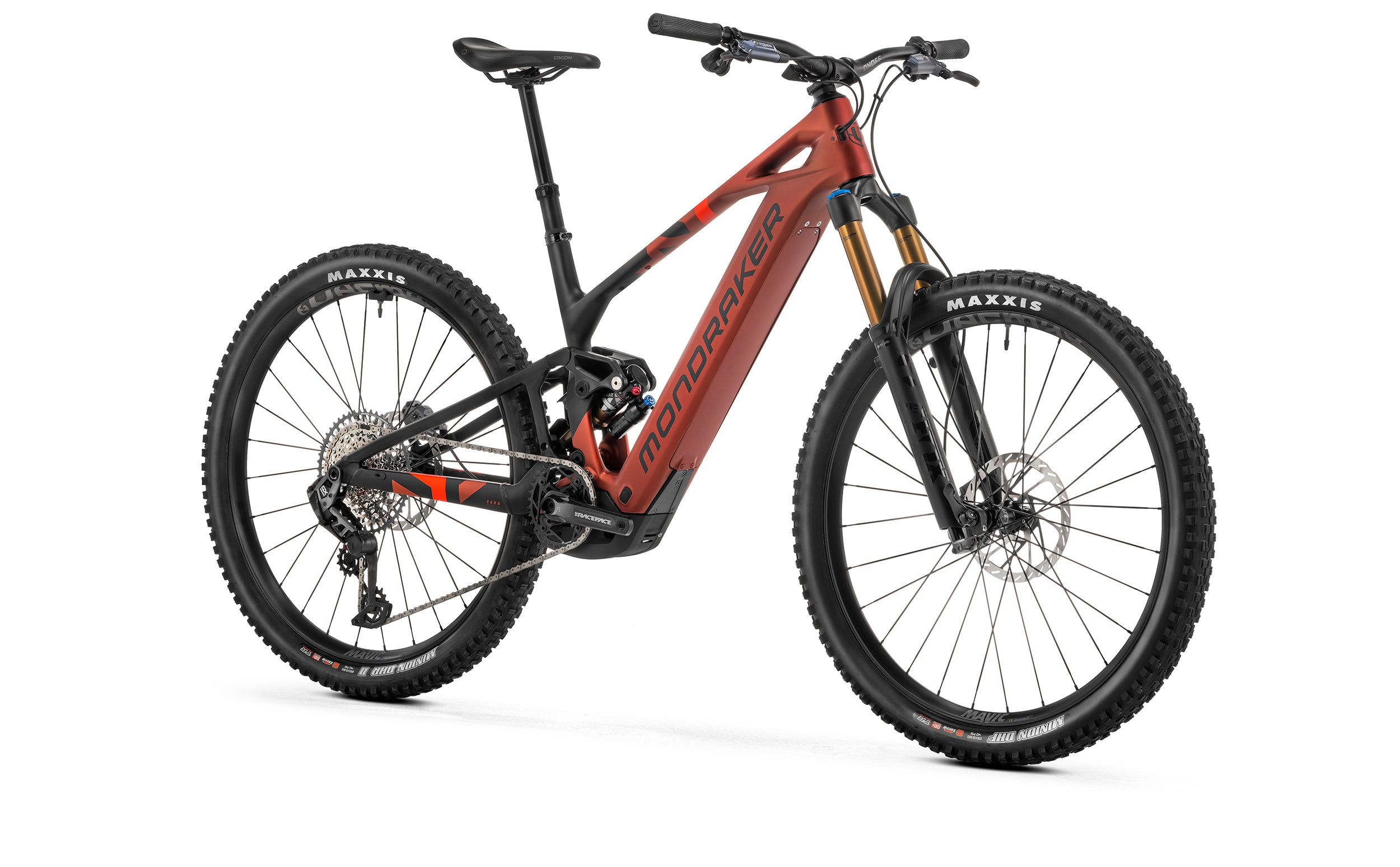

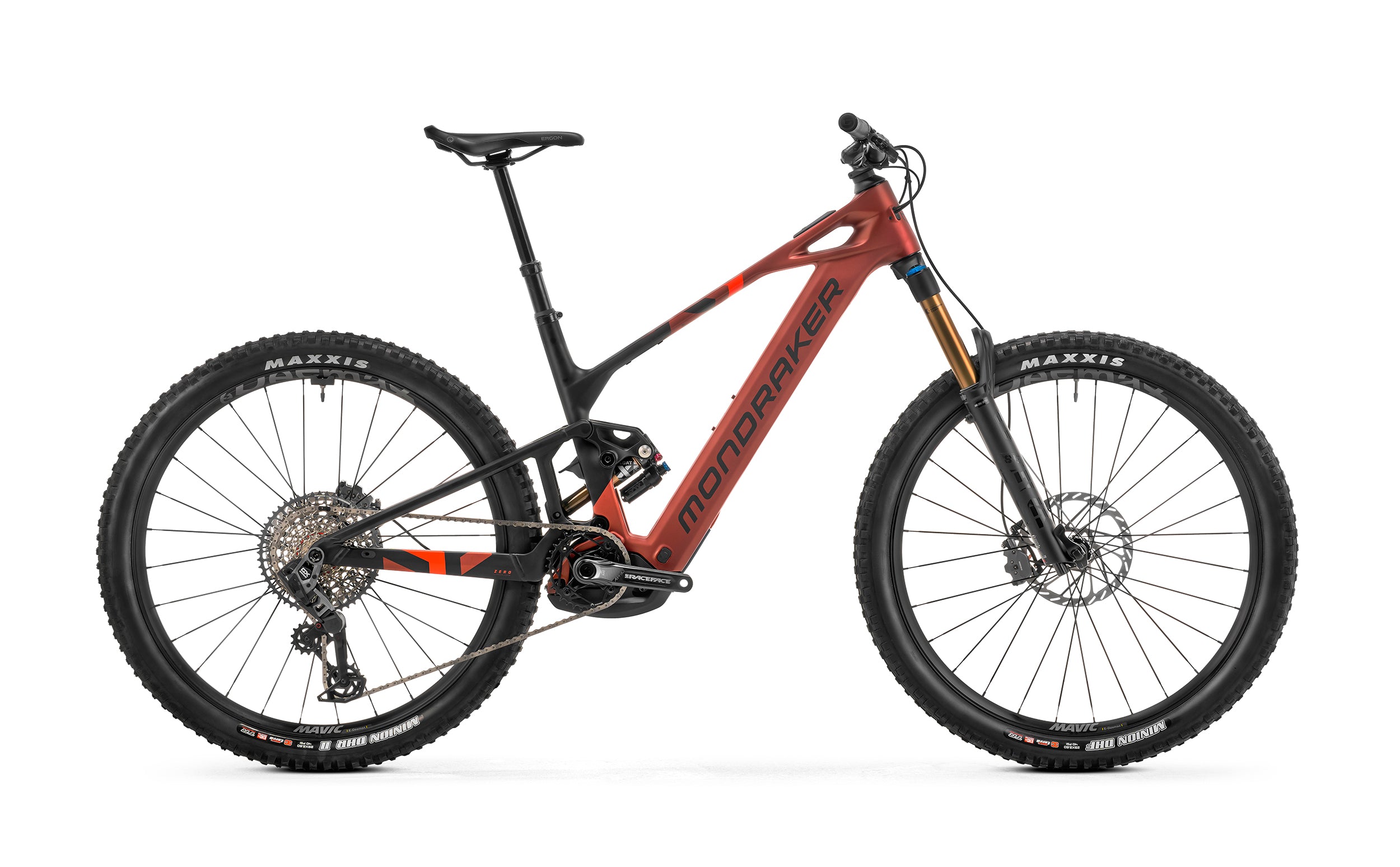

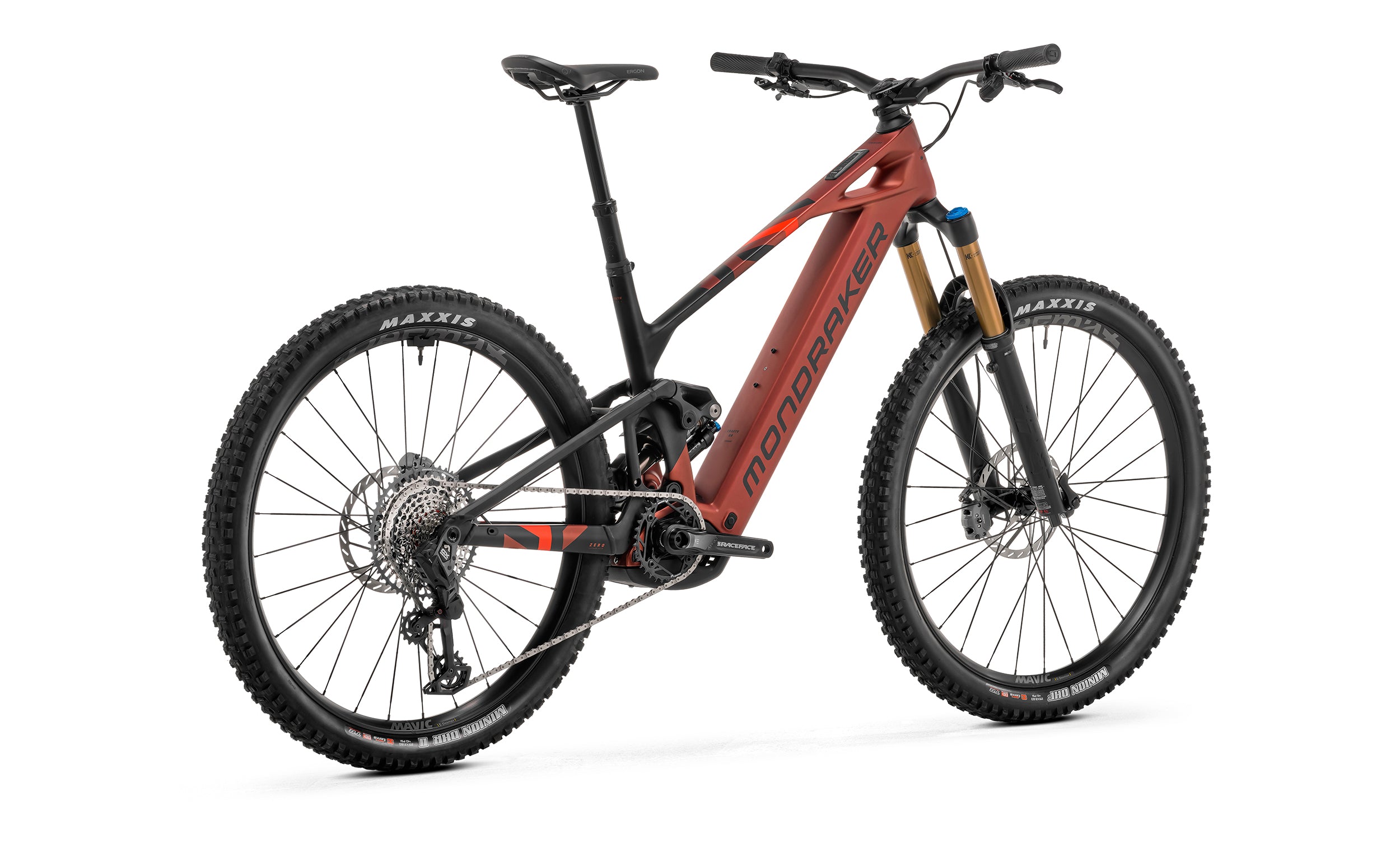

Mondraker Crafty Carbon RR 2025 Electric Mountain Bike - Earth Red

Mondraker Crafty Carbon RR 2025 Electric Mountain Bike - Earth Red

Save 0%

£7,694 ~~£7,699~~

Select an option to add this to your cart.

Push the limits of performance with the Mondraker Crafty Carbon RR 2025 Electric Mountain Bike, now available at The Rolling Fix, Liverpool. Built to dominate the toughest trails, this e-MTB combines cutting-edge Stealth Air Carbon engineering with the latest Bosch Performance Line CX Smart System, delivering raw power, efficiency, and agility in one sleek Earth Red package.

Power Meets Precision

At the heart of the Crafty Carbon RR is the Bosch Performance Line CX motor, offering seamless pedal assist up to 25km/h, paired with the Bosch Powertube 800Wh battery for all-day trail sessions. With Purion 400 / Bosch Mini Remote & System Controller, you're in full control of your ride, whether climbing technical sections or shredding descents.

Unrivaled Suspension & Control

Equipped with a Fox 38 Factory Kashima fork (160mm travel) and Fox Float X Factory rear shock (150mm travel), the Crafty Carbon RR delivers an ultra-responsive suspension system with Forward Geometry for stability at speed and confidence in every turn.

Key Features:

✅ Lightweight & Durable – Stealth Air Carbon frame with alloy rear triangle ensures strength without compromising weight.
✅ Ultimate Trail Performance – 160mm front / 150mm rear travel with Fox Factory Kashima suspension for supreme control.
✅ Bosch Smart System – Bosch Performance Line CX motor & 800Wh battery deliver seamless power and extended range.
✅ Precision Shifting – SRAM GX Eagle AXS T-Type 12-speed drivetrain for smooth, accurate gear changes.
✅ Top-Tier Braking – SRAM Maven Bronze 4-piston brakes with 200mm rotors for maximum stopping power.
✅ Tubeless-Ready Setup – Mavic E-Deemax wheels with Maxxis Minion DHF/DHR II 29x2.6" tires for unbeatable grip.

Redefine Your Ride

Whether you're sending it down rocky descents, charging steep climbs, or exploring new horizons, the Mondraker Crafty Carbon RR 2025 is the ultimate e-MTB for riders who demand the best.

🔥 Available now at The Rolling Fix, Liverpool. Ride beyond limits. 🔥

Specifications

Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips: Onoff Forest, CNC lock-on, 135mm

Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle: Ergon SM-10

Front brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever: Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes: Mavic J-bend double butted, contactless lacing

Front hub: Mavic, Boost 15x110mm, IS 6 bolts

Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset: Race Face Aeffect-R ebike, 160mm

Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Chain: Sram GX Eagle T-Type, 12s, Powerlock

Rear derailleur: Sram GX Eagle AXS, T-Type, 12s

Shift levers: Sram Eagle AXS Pod MMX, 12s

Cassette: Sram XS-1275, 10-52T, T-Type, 12s

Weight: 24,4 kg

Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor: New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh
