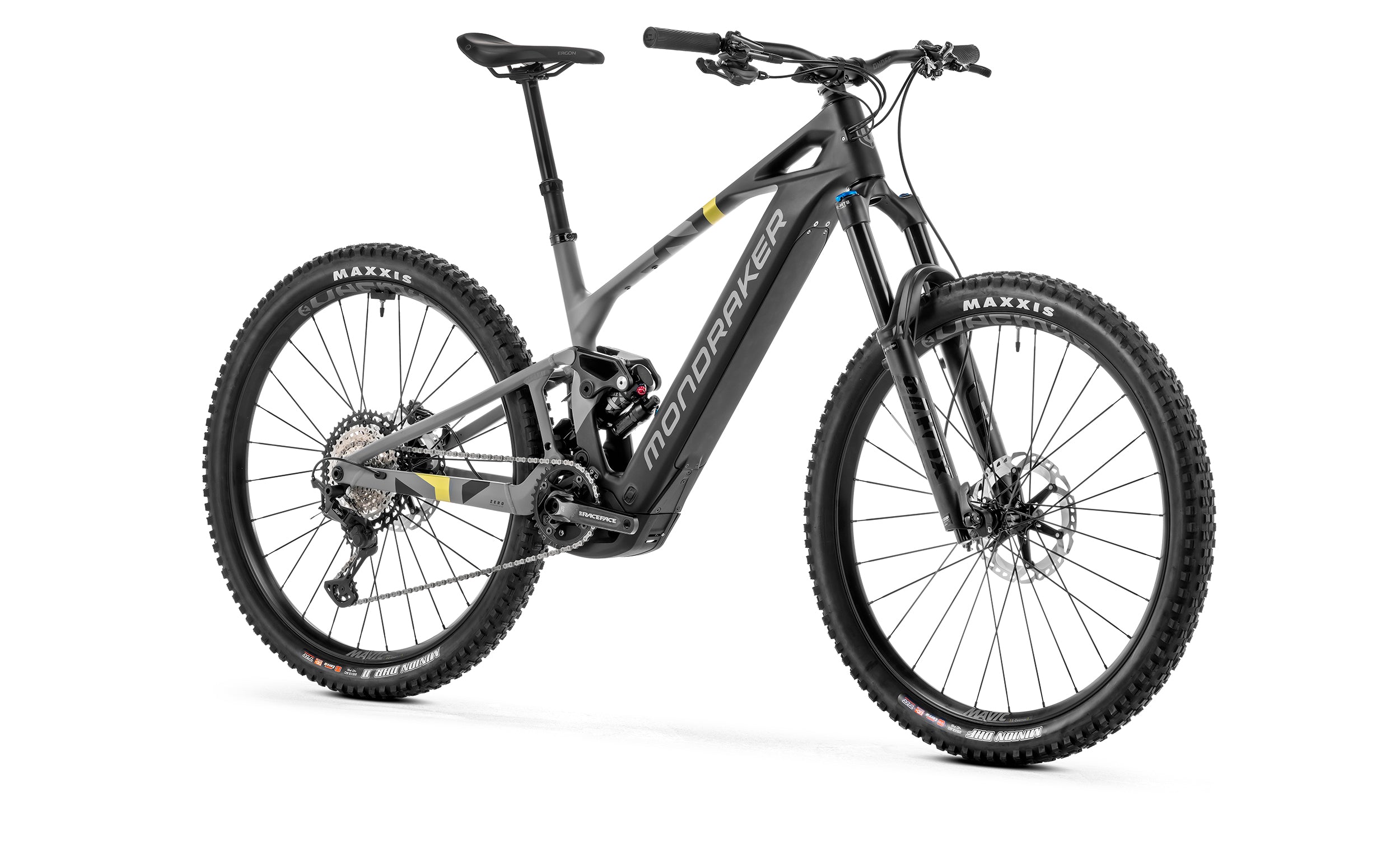

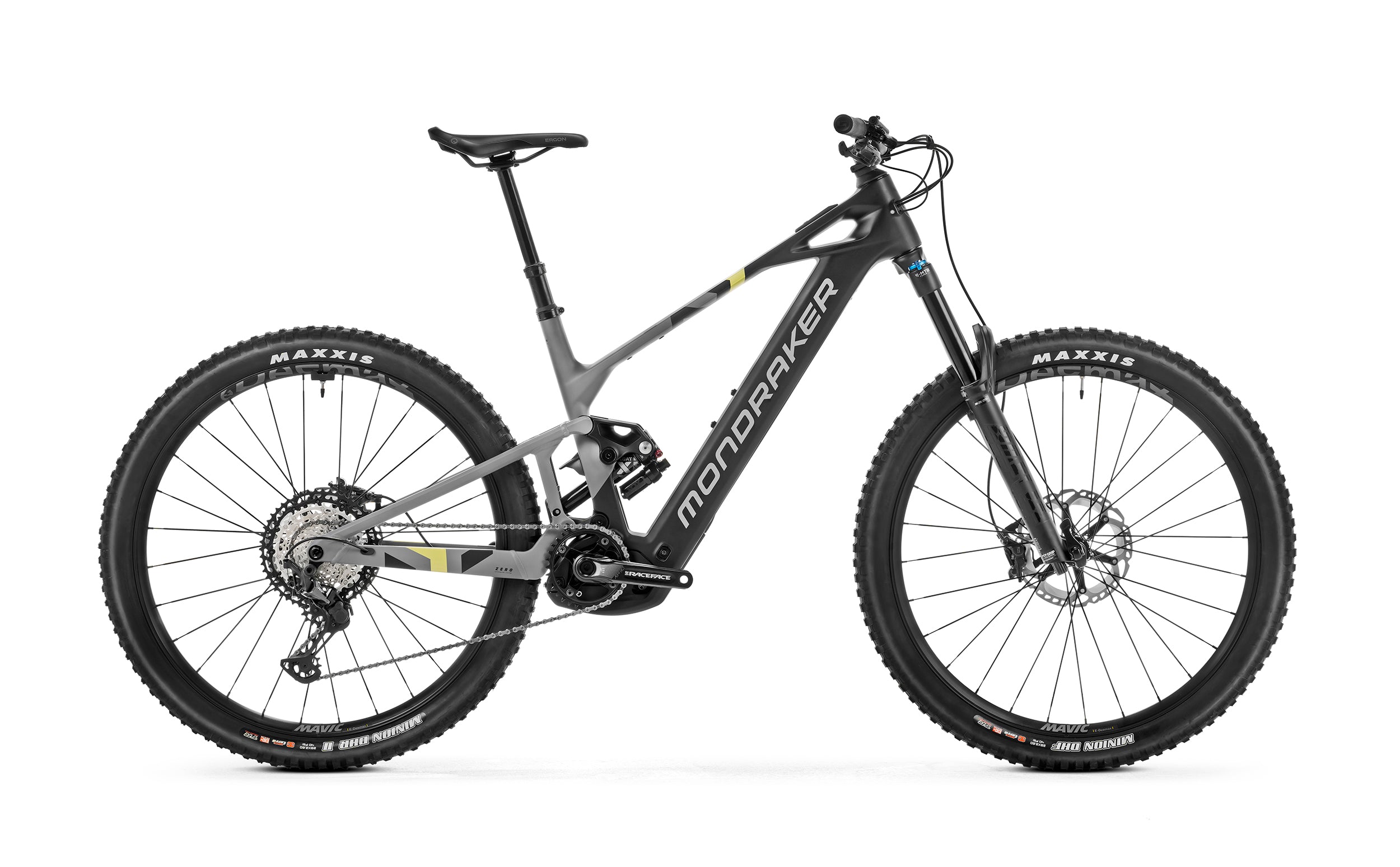

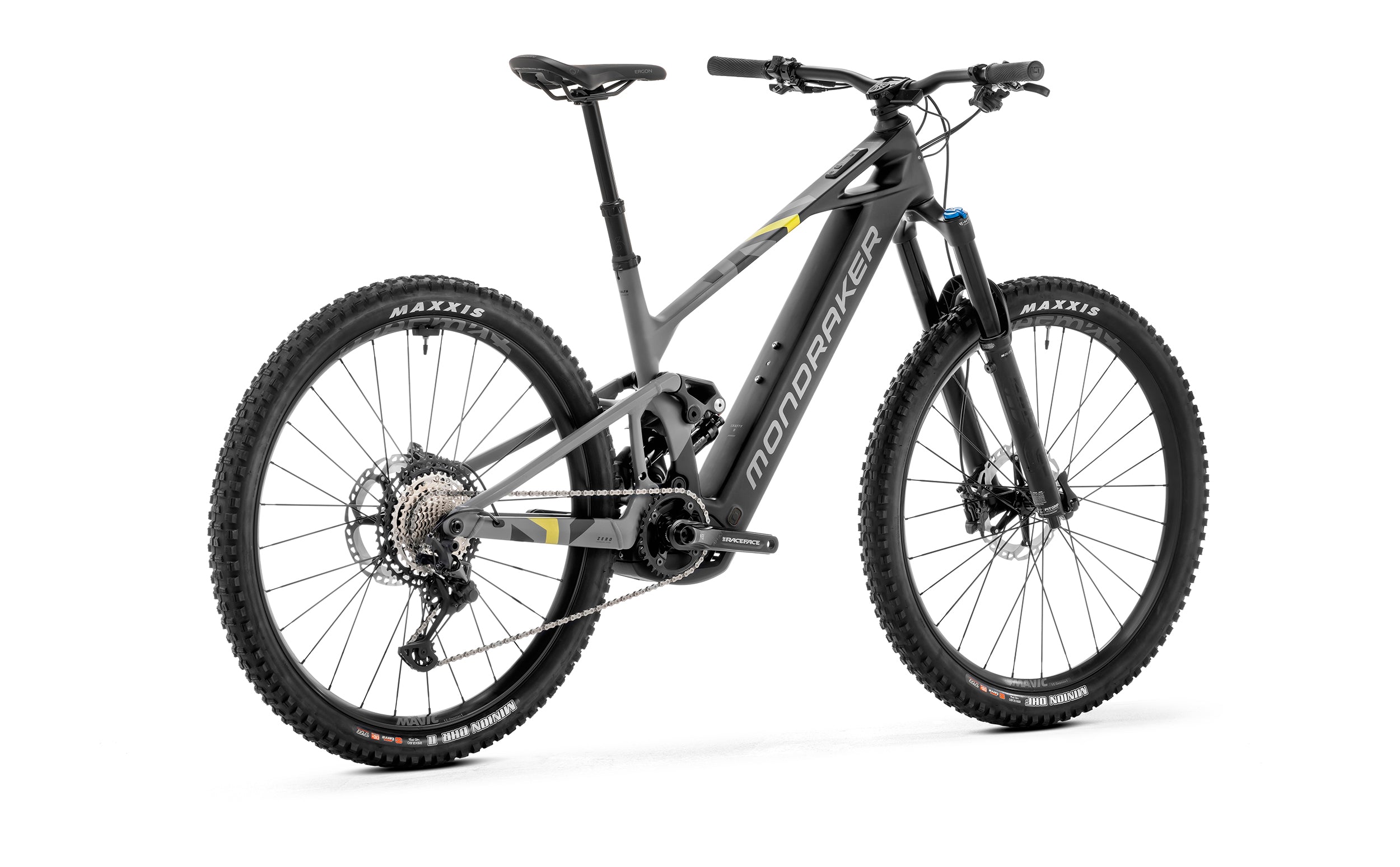

Mondraker Crafty Carbon R 2025 Electric Mountain Bike - Black

Mondraker Crafty Carbon R 2025 Electric Mountain Bike - Black

Save 0%

£6,294 ~~£6,299~~

Select an option to add this to your cart.

Take your trail riding to the next level with the Mondraker Crafty Carbon R 2025 – a cutting-edge electric mountain bike that blends power, agility, and durability into one high-performance package. Designed for riders who demand the best, this e-MTB features an ultra-lightweight Stealth Air Carbon front triangle paired with a robust Stealth Alloy rear, delivering superior strength and responsiveness on every ride.

Unmatched Performance & Handling

With 150mm of rear travel and Mondraker’s updated Zero Suspension System, the Crafty Carbon R soaks up big hits while maintaining efficiency on climbs. Up front, the Fox 38 Float GRIP Performance fork (160mm travel) ensures precise handling and confidence-inspiring control on technical descents. Mondraker’s Forward Geometry keeps you balanced, stable, and ready to attack any terrain.

Powerful Bosch Smart System Motor & 800Wh Battery

Experience the next level of e-MTB performance with the Bosch Performance Line CX Smart System. Delivering up to 85Nm of torque, this motor provides seamless assistance, helping you power through steep inclines and extend your rides further than ever. Paired with the Bosch Powertube 800Wh battery, you’ll enjoy longer range, faster acceleration, and optimized efficiency – so you can ride more and charge less.

Premium Components for the Ultimate Ride

Shimano XT 12-speed drivetrain for smooth and precise shifting
Shimano XT M8120 4-piston hydraulic brakes with 203mm rotors for unmatched stopping power
Mavic E-Deemax 29" wheels with Maxxis Minion DHF/DHR II tubeless-ready tyres for superior grip and durability
Onoff Pija dropper post for instant saddle height adjustments on the fly

Designed for Serious Trail Riders

From the sleek internal cable routing to the one-piece Monoblock upper link, every detail of the Crafty Carbon R is engineered for top-tier performance. With sizes ranging from S to XL, this e-MTB is ready to fit a wide range of riders.

If you’re looking for an electric mountain bike that dominates every trail, the Mondraker Crafty Carbon R 2025 is your perfect match. Available now at The Rolling Fix, Liverpool.

👉 Ride harder, go further, and explore more with the Crafty Carbon R.

Specifications

Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips: Onoff Forest, CNC lock-on, 135mm

Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle: Ergon SM-10

Front brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Rear brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever: Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes: Mavic J-bend double butted, contactless lacing

Front hub: Mavic, Boost 15x110mm, IS 6 bolts

Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset: Race Face Aeffect-R ebike, 160mm

Rings: Race Face, 34T, steel, direct mount

Chain: Shimano XT M8100, 12s

Rear derailleur: Shimano XT M8100, SGS, Shadow+

Shift levers: Shimano XT M8100, Rapid Fire Plus, 12s

Cassette: Shimano XT M8100 10-51T Hyperglide+, 12s

Derailleur hanger: Sram UDH

Weight: 23,9 kg

Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor: New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh
