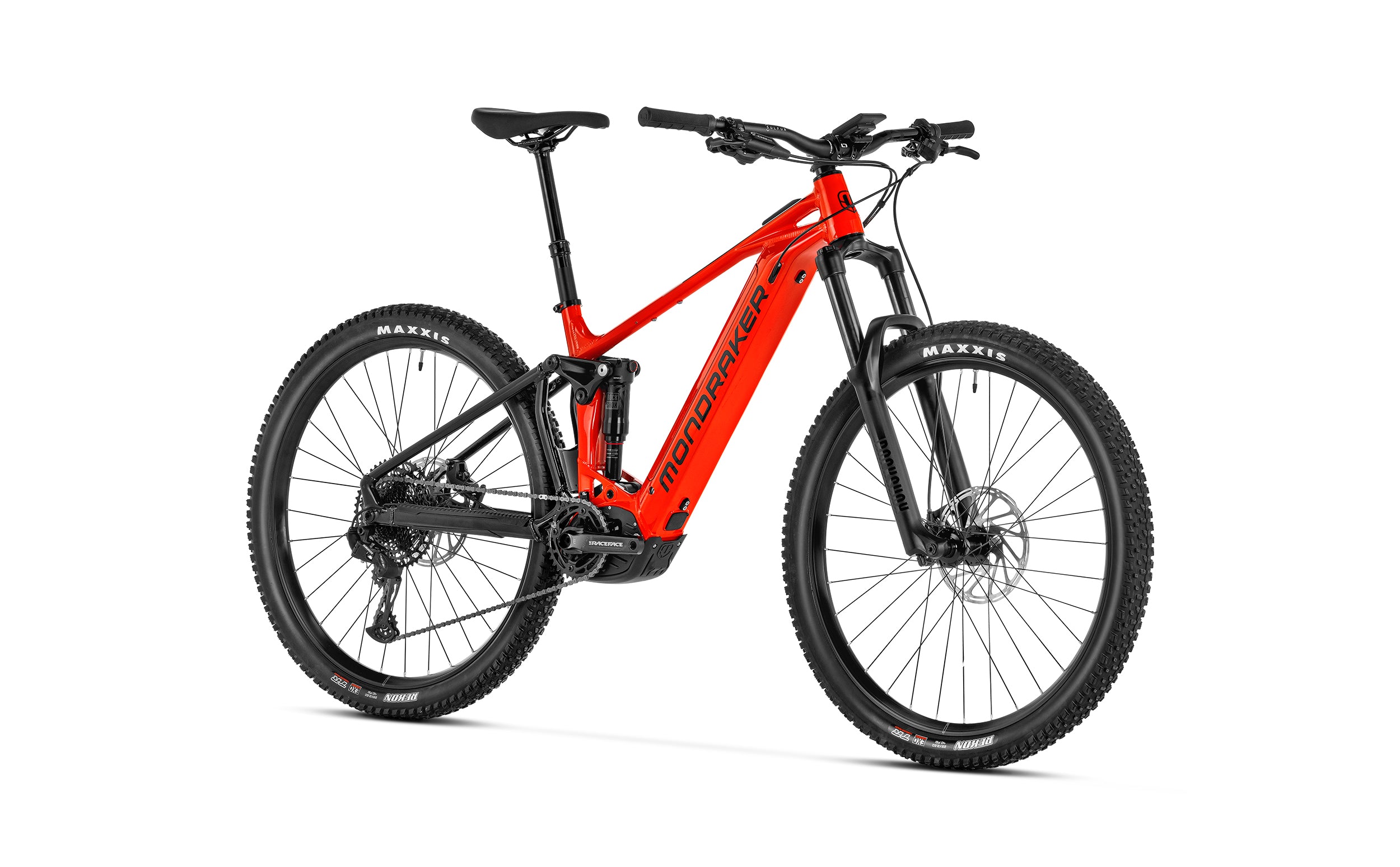

Looking for the ultimate adventure companion? Look no further than the Mondraker Chaser Electric Mountain Bike in Flame Red, now available at our Liverpool store. Engineered for exhilarating rides through rugged terrain, this e-bike is a game-changer for any avid cyclist. Let's delve into why this bike is a must-have for your next off-road escapade.
Crafted with precision, the Chaser boasts a Chaser 6061 Alloy Stealth Evo frame, optimized for e-bike performance with its Zero Suspension System. With 150mm of travel, you'll glide over obstacles effortlessly while experiencing the stability of Forward Geometry. Worried about power? Fear not, thanks to the integrated Bosch Powertube 625Wh battery and Bosch Performance Line CX Cruise motor, delivering reliable energy for extended adventures.
But that's just the beginning. Equipped with a RockShox Deluxe Select R DebonAir rear shock and RockShox 35 Silver TK 29 fork, you'll experience unparalleled comfort and control on every descent. And with Mondraker's exclusive shock settings, you can fine-tune your ride to perfection.
Navigating tricky trails? No problem. The Mondraker Chaser comes with reliable Sram DB8 brakes, providing exceptional stopping power when you need it most. Plus, the Mavic E-CrossRide rims and Maxxis Rekon tires ensure superior traction and durability on any terrain.
Comfort and convenience are key, which is why this bike features an Onoff Pija dropper seatpost and Onoff Sulfur handlebar and grips for a customized fit. And with the Bosch Intuvia display and Bosch System Controller, you'll have full control over your ride's performance.
Whether you're tackling steep climbs or flying down mountainsides, the Mondraker Chaser Electric Mountain Bike in Flame Red is your ticket to endless adventure. Visit our Liverpool store today and experience the thrill for yourself!
Specifications
Frame:
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
Light compression, Linear rebound, 1 Token
Fork:
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
MDK ebike black
Front brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes:
Mavic J-bend double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
25.4 kg
Display:
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 625Wh
